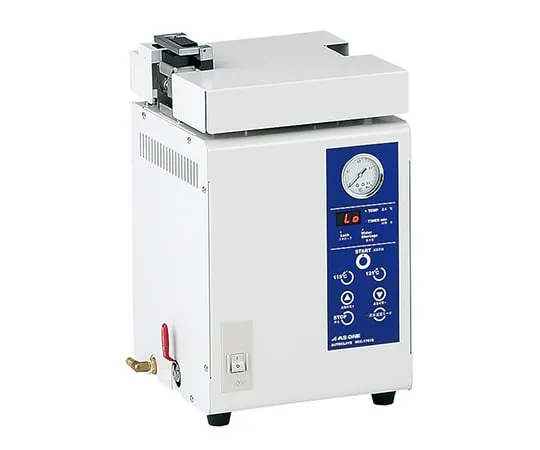

2-8059-02-22 Science Autoclave (4L) Compact Size Pre-Shipment Inspection Written NCC-1701B
Product Description
Product Model: 2-8059-02-22Product Brand: AS ONE Corpor […]
Contact Us
Product Details
Product Model: 2-8059-02-22
Product Brand: AS ONE Corporation
Features
- Small autoclave suitable for research institutes.
- Continuous sterilization is possible in a short time.
- Compact in size, it takes up little space and is suitable for small sterilization.
- A semi-automatic low-cost model with microcomputer control.
- It is equipped with "liquid sterilization mode" to prevent bumping during liquid and medium sterilization.
Spec
- Temperature setting (deg. C): 115/121
- External dimensions (mm): 250 x 250 x 426
- Can Capacity: About 4 L
- Size of can: phi 150 x 220 mm
- Sterilization pressure: (121 degrees C) 0.1 MPa, (115 degrees C) 0.07 MPa
- Timer settings: (115 degrees) 30 to 99 minutes, (121 degrees) 20 to 99 minutes
- Pressure gauge: Bourdon tube type, 0 ~ 0.4 MPa
- Control system: Microcomputer control system
- Safety device: Air-heating prevention device, safety valve, overcurrent protection device, leakage protection, door lock detection, overtemperature protection
- Material: Body Exterior/Steel (Baked Paint), Can Body/Stainless Steel (SUS 304)
- Power supply: 100 VAC 50/60 Hz 500 W
- Weight: approximately 14 kg
- Accessories: net basket (phi 130 x 200 mm), shelf board, drain tube (2 m)
- Sterilization Class: Class N equivalent
- *This product is not a medical device and should be ***d for research and development purposes.
- *It can not be ***d to sterilize medical instruments.
- Model number: NCC -1701 B
- App***ix: Inspection Certificate documents
- *Products with Inspection Certificate are Azwan's original service that includes inspection of control and electric engine personnel and issuance of inspection documents at the time of shipment.
- This product is compatible with the Validation Service (IQ/OQ). Please contact us.
- *Validation service is a service where installation qualification (IQ) and operational performance qualification (OQ) are performed and inspection documents are submitted at the customer's site.
