63-7659-92 EOS 40W Triple Output Embedded Switch Mode Power Supply SMPS, 2 A, 6 A, 500 mA, 5/±12V dc Medical Approved Open Frame LFMVLT40-3200
Product Description
Product Model: 63-7659-92Product Brand: EOS Features IE […]
Contact Us
Product Details
Product Model: 63-7659-92
Product Brand: EOS
Features
- IEC950, EN60950, UL1950. VDE, UL Recognised Component for Canada ; US. Connectors are not supplied. MVLT110 current rating with Fan (150LFM). Power rating with forced airflow, requires ***r supplied 15CFM fan. 40W to 110W Medical Power Supplies, MVLT Series. Low leakage current ;250μA EMC to EN55022-B, CISPR22-B, FCC Part 15 Class B, EN50082-1 Power factor correction to EN61000-3-2 (MVLT80/110) Over voltage, power limit and short circuit protection Optional covers available, see stk nos. ; 377-6968 377-6968 or ; 396-1942 396-1942 Medical approval EN60601-1-2
Spec
- Quantity:1piece
- Output Voltage : 5/±12V dc
- Output Current : 2 A, 6 A, 500 mA
- Power Rating : 40W
- Number of Outputs : 3
- Input Voltage : 180 → 264 V ac, 90 → 132 V ac
- Mounting Type : Chassis Mount
- Package Type : Open Frame
- Length : 101.6mm
- Width : 50.8mm
- Depth : 27.18mm
- Weight : 150g
- Maximum Temperature : +50°C
- Medical Approved : Yes
- CODE No.:666-7656
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
64-0243-98 STMicroelectronics LE50ABZ-AP, LDO Regulator, 100mA, 5 V, ±1% 3-Pin, TO-92 LE50ABZ-AP
model: 64-0243-98
brand: STMicroelectronics
Electronic/Electrical Parts and Controll Equipments
63-4582-06 Stainless Steel Plain Washer, 0.5mm Thickness, M3 (Form A), A4 316 189-620
model: 63-4582-06
brand: RS PRO
Electronic/Electrical Parts and Controll Equipments

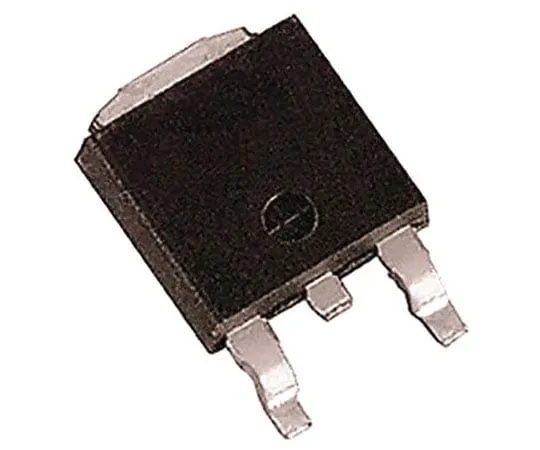

63-8384-72 STMicroelectronics 100V 30A, Silicon Junction Diode, 2+Tab-Pin DPAK FERD30H100SB-TR FERD30H100SB-TR
