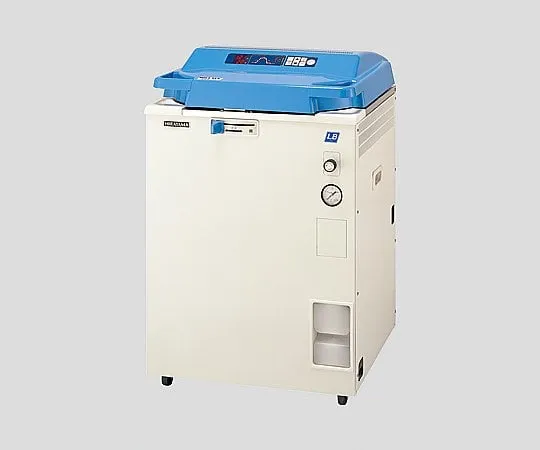

2-5708-01 High-Pressure Steam Sterilizer HVA-85LB
model:
2-5708-01
category:
chemicalproducts
Product Description
Product Model: 2-5708-01 Features It is an economy type […]
Contact Us
Product Details
Product Model: 2-5708-01
Features
- It is an economy type with 85 L/110 L capacity equipped with forced cooling as standard.
- The one-touch lever makes it easy to lock the lid.
- Safety measures are also taken by internal pressure type futapacking, sliding type locking pin and pressure sealing method.
- Safety is improved by a double interlock mechanism that detects the pressure and temperature inside the can during sterilization and during stoppage, and locks the lid.
- It has a heat retaining function that prevents the medium from coagulating.
Spec
- External dimensions (mm): 667 x 652 x 1011
- Inner dimension (mm): φ420 x 615
- Capacity (L): 85
- Weight (kg): 78
- Type of pressure container: Small pressure container
- Can body material: Stainless steel (SUS304)
- Sterilization temperature range: 105 - 128℃ variable type
- Sterilization timer: 1 - 250 minutes remaining time display method
- Insulation temperature range: 45 - 80℃ variable type
- Insulation timer: 20 hours (fixed)
- Exhaust bottle (when filled with water): 3.4L internal type
- Safety valve operation pressure: 0.196MPa
- Thermometer: 5 - 130℃
- Pressure gauge: 0 - 0.4MPa
- Power supply: Single phase AC200V 3.0kW (15A)
- Power connection part shape: Round terminal
- Accessories duckboard, Drainage hose, Exhaust hose, Exhaust bottle, Drain recovery bottle, Caster stopper (2 pieces), INSULOK
- Model number: HVA-85LB
- *This product cannot be ***d in medical institutions.
