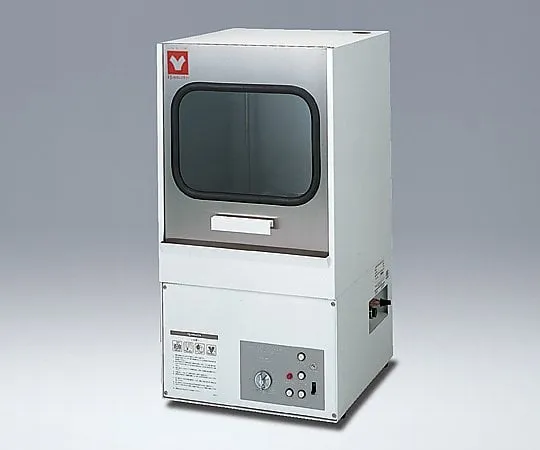

1-7196-01 Laboratory Washer AW47
model:
1-7196-01
category:
chemicalproducts
Product Description
Product Model: 1-7196-01 Spec Chamber dimensions (mm): […]
Contact Us
Product Details
Product Model: 1-7196-01
Spec
- Chamber dimensions (mm): 420 x 450 x 570
- External dimensions (mm): 450 x 490 x 875
- Cleaning method: Pressurized water discharging method in 2 directions of up and down (injection nozzle rotation type)
- Number of frames: Test tube/16.5mL x 450 pieces, Volumetric flask/100mL x 36 pieces
- Cleaning time: 0 - 60 minutes (setting available)
- Supply hot water method: Heater heating (1kW, internal)
- Supply water temperature: Room temperature - 60℃
- Supply water pressure: 0.1 - 0.3MPa
- Power supply: AC100V 50/60Hz 15A
- Power cord length: Approx 2m
- Weight: Approx 43kg
- Model number: AW47
