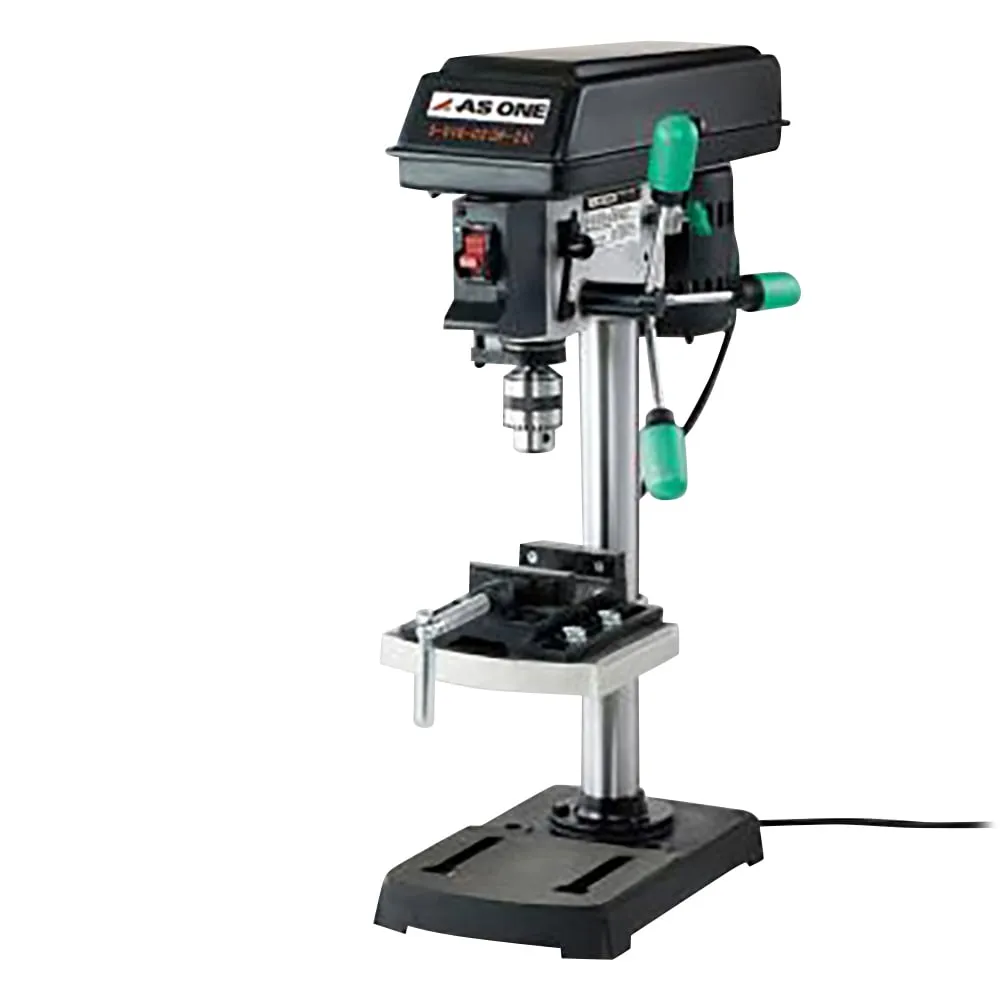

2-016-02 Small Drilling Machine 201 x 308 x 630 DP-2A
Product Description
Product Model: 2-016-02Product Brand: AS ONE Corporatio […]
Contact Us
Product Details
Product Model: 2-016-02
Product Brand: AS ONE Corporation
Features
- The spindle speed can be adjusted in 5 steps according to the material.
- The worktable is movable and can be raised and lowered and tilted 45 degrees from side to side.
Spec
- Model number: DP-2A
- Size (mm): 201 x 308 x 630
- Weight (kg): 19
- Speed: 50Hz/515 915, 1430, 1950, 2580 rpm, 60Hz, 620, 1100, 1720, 2340, 3100 rpm
- Table size: 183 x 180mm (Sloped ±45 °)
- Chuck: 220mm
- Drill chuck: taper/JT-6, grasp diameter/φ 1.5 to 13.0mm, machining ability/φ 1.5 to 13.0mm
- Vice: mouth width 83mm, opening width 84mm, 22mm
- Power supply: AC100V 50/60Hz 249 W
- Accessories: drill chuck, chuck key, Vice and fixed metal bracket set, standard tool
