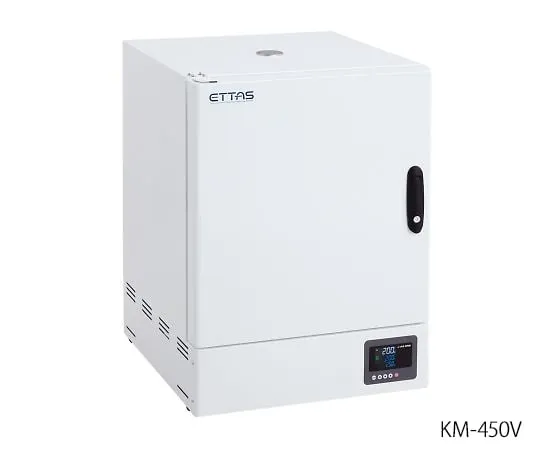

2-6393-41-28 Dry heat sterilizer left door (right handle, left opening) with Pre-shipment Validation KM-450V
Product Description
Product Model: 2-6393-41-28Product Brand: AS ONE Corpor […]
Contact Us
Product Details
Product Model: 2-6393-41-28
Product Brand: AS ONE Corporation
Features
- A simple natural convection type dry heat sterilizer.
- The clear LCD display is very easy to see and simple to operate.
- In addition to the PV/SV two-stage display that makes it easy to check the measured values and the set values, the over-temperature rise prevention set temperature display is adopted.
- Four timer functions (ON, OFF, ON/OFF, SV start) are provided as standard.
- The temperature control ***s PID control, which enables stable temperature control with high accuracy.
- Equipped with Digital setting type Overrise prevention device
Spec
- Validated products are Azuwan original services that conduct FAT (Factory Acceptance Test) at Azuwan before shipping.
- Validate (FAT) before shipping.
- After receiving the order, a FAT instruction form (plan) is sent to the ***r, and after the signature is returned, the FAT is performed.
- App***ix: FAT report/Calibration Certificate of ***d measuring instrument copied
- *I am attaching Azwan's original FAT instruction manual (see the sample at the bottom left of the Screen).
- Temperature points: 9 points at 250 degrees Celsius
- Left door (right handle, left opening)
- External dimensions (mm): 550 x 567 x 760
- Internal dimensions (mm): 450 x 447 x 450
- Temperature adjustment range: room temperature + 20 ~ 250 degrees C
- Materials: Exterior/Steel (powder coating), Interior/SUS 304 (some SUS 443 J 1)
- Temperature control system: PID control, SSR output
- Safety device: Digital setting type overrise prevention function/Overcurrent breaker/burnout mechanism (Heater OFF when sensor is disconnected)
- Power supply: 100 VAC 50/60 Hz
- Heater: 1400 W
- Weight: approximately 40 kg
- Accessories: 2 shelves, 2 sets of shelf receptacles
- *This product is not a medical device and should be ***d for research and development purposes.
- *It can not be ***d to sterilize medical instruments.
- *If you would like to request a local IQOQ, please contact us separately. We will need your installation address for the estimate.
