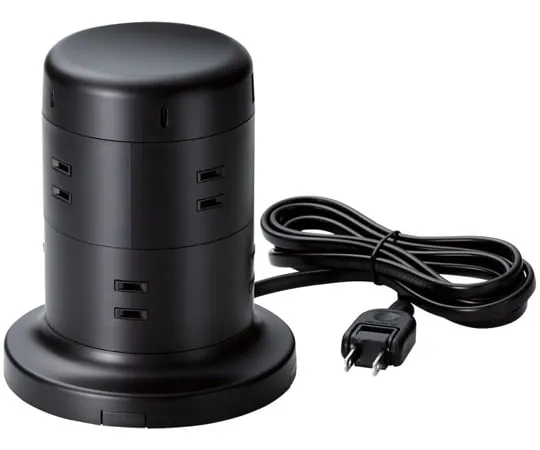

65-2325-56 Tower Taps w/Anti-dust Shutter Fixable 8 Total 45 W USB-A Female 3 Ports USB-C Female 2 Ports Black ECT-2120BK
dissectiontoolsandsupplies

65-2325-56 Tower Taps w/Anti-dust Shutter Fixable 8 Total 45 W USB-A Female 3 Ports USB-C Female 2 Ports Black ECT-2120BK

model: 65-2325-56
brand: ELECOM CO., LTD

Product Description

Product Model: 65-2325-56Product Brand: ELECOM CO., LTD […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 65-2325-56
Product Brand: ELECOM CO., LTD

Features

  • A tower-shaped USB tap with 8 ports, 2 USB Type-CTM (USB-CTM) ports, and 3 USB-A ports.
  • The total maximum output of the USB ports is 45 W (5 V/9.0 A), allowing you to charge multiple compatible smartphones and tablets simultaneously without using an AC adaptor.
  • USB Power Delivery 45 W is available when using the USB Type-CTM (USB-CTM) port indep***ently, enabling fast charging of compatible smartphones and tablets and charging of personal computers.
  • The USB port is equipped with a "Auto Charge" function that automatically detects connected devices and charges them at optimal output.
  • The AC inlet is equipped with a "dust prevention shutter" to prevent dust from entering when not in ***.
  • The AC inlet ***s a thermosetting resin that is resistant to melting in the event of heat generation and is effective in preventing electric fires.
  • The AC outlets are arranged 45 degrees from one level to the next, so that they do not interfere with other AC outlets when using large AC adapters.
  • Equipped with an element (varistor) that absorbs lightning surges up to 12500 V ca***d by induced lightning, it protects connected equipment. (* The maximum surge voltage of 12500 V is based on the JEC210/212 standard.). The performance deteriorates dep***ing on the voltage and the number of times received. )
  • By pulling out the leg parts stored in the bottom of the unit, you can stably install the unit even if the weight balance is uneven due to a connected adapter.
  • The leg parts are equipped with anti-slip members to prevent the body from sliding sideways even when the connected cable is pulled.
  • The leg parts are equipped with 5mm diameter screw fixing holes, and the bottom surface is equipped with a Dharma hole, which can be hung or fixed to a wall with the included tapping screws.
  • The cable can be taken out in the horizontal direction using a groove on the bottom as well as down.
  • The grooves ***d to remove cables from the sides can be covered with mounted parts. (One company) Adopts a double coated cord conforming to the Japan Wiring System Industry Association Standard (JWDS0010).
  • It is effective for preventing electric shock and fire ca***d by broken wires and broken coating.
  • The two-pin outlet plug is equipped with an insulating sleeve at the base of the pin, which is effective for preventing fires ca***d by tracking phenomena.
  • Uses an outlet plug that can swing 180 degrees for easy installation in tight spaces.
  • * The USB cable is not included.
  • Please prepare separately.
  • ※USB Type-C and USB-C are trademarks of USB Implementers Forum.

Spec

  • Main body socket shape: A type 2-pin
  • Number of body slots: 8
  • Plug Specifications: A Type 2-pin
  • AC cord length: about 2.0 m
  • USB terminal shape: 2 USB Type-CTM (USB-CTM) ports and 3 USB-A ports
  • AC side rating: up to 13 A 125 V 1300 W
  • USB side rated input: AC 100 -240 V 50/60 Hz
  • USB side rated power: Total maximum 45 W (5 V/9.0 A)
  • USB side rated output (USB Type-CTM (USB-CTM) port)
  • When ***d alone: USB Power Delivery 45 W (5 V/3.0 A 9 V/3.0 A 15 V/3.0 A 20 V/2.25 A)
  • Other than when ***d alone: 15 W each (5 V/3.0 A)
  • USB side rated output (USB-A port)
  • When ***d alone (including when ***d in combination with USB Type-CTM): 12 W (5 V/2.4 A)
  • When using multiple devices (including when using with USB Type-CTM): Total 15 W (5 V/3.0 A)
  • Lightning guard: Yes
  • Dust shutter: Yes (AC plug only)
  • Double structure: Yes
  • Double covering: Yes
  • Insulation cap plug: Yes
  • Swing plug: Yes
  • Hang holes: Yes
  • Screw fixing holes: Yes
  • Color: Black
  • Material: Body: Polycarbonate Resin Plug: Urea Resin Plug: PVC Resin
  • Dimensions: Approx. 130 (W) x 130 (D) x 150 (H) mm * Only body (excluding protrusions)
  • Mass: About 640 g
  • Accessories: 5 fixing screws (including one spare) Instruction Manual
  • Available in: Japan only
  • Standards: USB Power Delivery Compliant
  • Laws and regulations: * PSE specific electrical supplies
  • Warranty period: 1 year
  • ※USB Type-C and USB-C are trademarks of USB Implementers Forum.
