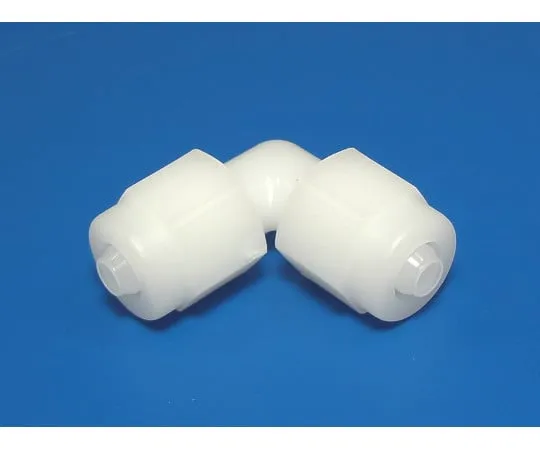

63-3196-23 FU Connector Elbow PP FCL0406
Product Description
Product Model: 63-3196-23Product Brand: ARAM Corporatio […]
Contact Us
Product Details
Product Model: 63-3196-23
Product Brand: ARAM Corporation
Features
- FU cotube joint only.
- This type of joint is tightened with a nut after the tube is inserted, and it is possible to make a secure connection without attaching a separate FU band.
- For FU tube connection.
- Made of polypropylene.
- Use within 5~45°C.
- *After passing the sleeve nut and sleeve through the tube, insert the tube all the way to the back of the bamboo shoot.
- *After inserting the tube, tighten the nut all the way back.
- *Loosen the nut once to check if the sleeve is fed to the root of the bamboo shoots.
- *Check that the nut is not loose before ***.
- *Replace the FU connector with a new one if the bamboo shoots become rounded.
- *Do not *** the sleeve repeatedly.
- *Do not *** sleeves other than those specified by the manufacturer.
Spec
- L-type
- Weight: 0.042 kg
- Applicable Tube Inner Diameter: 4 mm
- Applicable Tube Outer Diameter: 6 mm
