63-3196-19 FU Connector Straight PP FCS0406
automaticdiluter

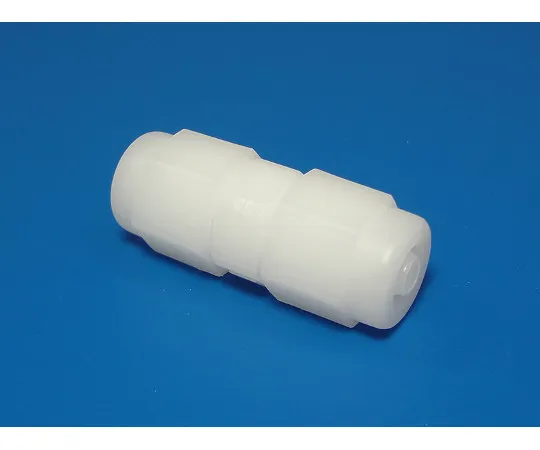

63-3196-19 FU Connector Straight PP FCS0406

model: 63-3196-19
brand: ARAM Corporation
category: automaticdiluter

Product Description

Product Model: 63-3196-19Product Brand: ARAM Corporatio […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-3196-19
Product Brand: ARAM Corporation

Features

  • FU cotube joint only.
  • This type of joint is tightened with a nut after the tube is inserted, and it is possible to make a secure connection without attaching a separate FU band.
  • For FU tube connection.
  • Made of polypropylene.
  • Use within 5~45°C.
  • *After passing the sleeve nut and sleeve through the tube, insert the tube all the way to the back of the bamboo shoot.
  • *After inserting the tube, tighten the nut all the way back.
  • *Loosen the nut once to check if the sleeve is fed to the root of the bamboo shoots.
  • *Check that the nut is not loose before ***.
  • *Replace the FU connector with a new one if the bamboo shoots become rounded.
  • *Do not *** the sleeve repeatedly.
  • *Do not *** sleeves other than those specified by the manufacturer.

Spec

  • straight type
  • Weight: 0.04 kg
  • Applicable Tube Inner Diameter: 4 mm
  • Applicable Tube Outer Diameter: 6 mm
