63-7650-88 Phoenix Contact PT 2.5/ 9-7.5-H Non-F***d Terminal Block, 9 Way/Pole, Screw Terminals, 20 → 10 AWG Through Hole, 1988176
model:
63-7650-88
brand:
Phoenix Contact
Product Description
Product Model: 63-7650-88Product Brand: Phoenix Contact […]
Contact Us
Product Details
Product Model: 63-7650-88
Product Brand: Phoenix Contact
Features
- DIN EN 60512-5-2:2003-01. UL, CUL, CSA, PCT, VDE, CCA. Phoenix Contact COMBICON PT 7.5mm PCB Terminal Blocks. COMBICON PT Series Screw terminal blocks with interlocking housing. Features and Benefits. High terminal block capacity, thanks to rectangular terminal block space 7.5 mm pitch Highly flexible conductor protection for easy, repeated connecting Rugged design for larger cross sections and higher voltages Plus/minus screw Accepts solid and flexible wires of 0.5 mm² to 4.0 mm² (20-10 AWG) Rated at 32A/500V max Available in 2 and 3 ways Flammability rating UL94V-0
Spec
- Quantity:1piece
- Series : PT 2.5/ 9-7.5-H
- Number of Ways : 9
- Mounting Type : Through Hole
- Pitch : 7.5mm
- Current Rating : 32A
- Termination Method : Screw
- Wire Size : 20 → 10 AWG
- Material : Nylon
- Colour : Green
- CODE No.:648-1916
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-7527-49 Schneider Electric TeSys D, NO/NC (2), Contactor Timer, Front Mount, 10 A LADS2
model: 63-7527-49
brand: Schneider Electric
Electronic/Electrical Parts and Controll Equipments
63-7628-46 Broadcom, HCPL-2531-000E DC Input Transistor Output Dual Optocoupler, Through Hole, 8-Pin PDIP HCPL-2531-000E
model: 63-7628-46
brand: Broadcom
Electronic/Electrical Parts and Controll Equipments
63-6909-53 0 to 5 V dc DC-DC Converter Insulation type high voltage output type 200 muA 5 kV dc A50P-5
model: 63-6909-53
brand: XP Power
Electronic/Electrical Parts and Controll Equipments

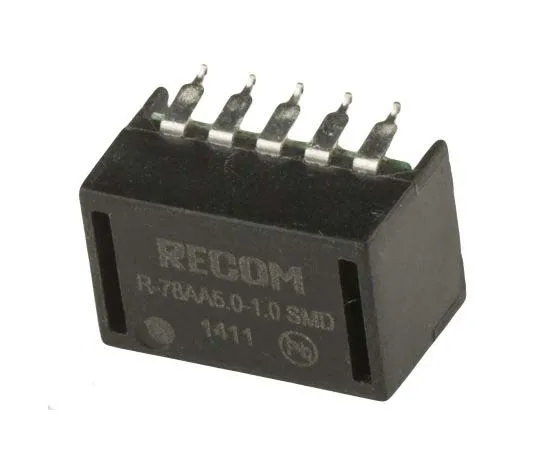

63-7723-43 Recom Switching Regulator, 6.5 → 18V dc Input, 5V dc Output, 1A R-78AA5.0-1.0SMD
