Features

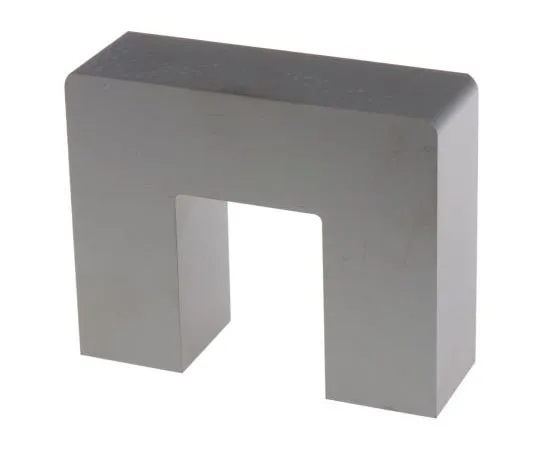

• 1) The AL value in the table applies for a U core set consisting of two cores (combination UI 93/152/30) without an air gap. 2) The AL value in the table applies for a core set consisting of one U core and one I core (combination UI 93/104/30) without an air gap. U ; I Cores. EPCOS U cores are of rectangular cross section and I Cores are made of SIFERRIT Materials N27 and N87. Owing to their high saturation flux density, high curie temperature and low dissapation losses they are suitable for power, pulse and high-voltage transformers.U and I cores are supplied separately. Applications. Storage chokes and transformers Building power transformers
