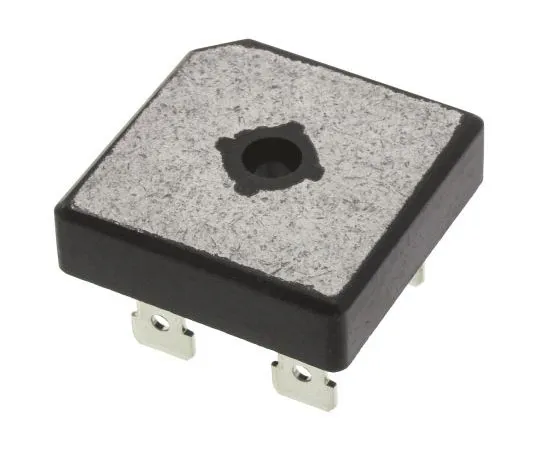

63-7648-85 Vishay GBPC2510-E4, Bridge Rectifier, 25A 1000V, 4-Pin GBPC GBPC2510-E4
Product Description
Product Model: 63-7648-85Product Brand: Vishay Features […]
Contact Us
Product Details
Product Model: 63-7648-85
Product Brand: Vishay
Features
- UL E54214. Bridge Rectifiers with Push-on Terminals, GBPC25 Series, Vishay Semiconductor. High Current 25 Amperes Universal, 3-way terminals: Push-on, wrap around or solder Glass passivated chip junction Low thermal resistance
Spec
- Quantity:1box(100pieces)
- Bridge Type : Single Phase
- Peak Average Forward Current : 25A
- Peak Reverse Repetitive Voltage : 1000V
- Mounting Type : Screw Mount
- Package Type : GBPC
- Pin Count : 4
- Diode Technology : Silicon Junction
- Configuration : Single
- Peak Non-Repetitive Forward Surge Current : 300A
- Maximum Operating Temperature : +150 °C
- Minimum Operating Temperature : -55 °C
- Peak Forward Voltage : 1.1V
- Peak Reverse Current : 5µA
- Length : 28.8mm
- Width : 28.8mm
- CODE No.:145-2580
