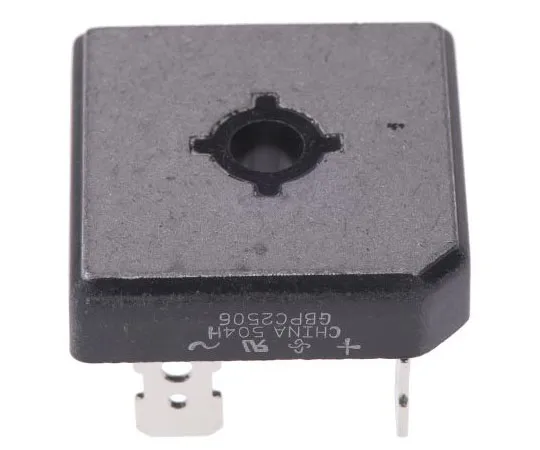

63-7648-36 Vishay GBPC2506-E4, Bridge Rectifier, 25A 600V, 4-Pin GBPC GBPC2506-E4
Product Description
Product Model: 63-7648-36Product Brand: Vishay Features […]
Contact Us
Product Details
Product Model: 63-7648-36
Product Brand: Vishay
Features
- UL E54214. Bridge Rectifiers with Push-on Terminals, GBPC25 Series, Vishay Semiconductor. High Current 25 Amperes Universal, 3-way terminals: Push-on, wrap around or solder Glass passivated chip junction Low thermal resistance
Spec
- Quantity:1box(100pieces)
- Bridge Type : Single Phase
- Peak Average Forward Current : 25A
- Peak Reverse Repetitive Voltage : 600V
- Mounting Type : Screw Mount
- Package Type : GBPC
- Pin Count : 4
- Diode Technology : Silicon Junction
- Configuration : Single
- Peak Non-Repetitive Forward Surge Current : 300A
- Maximum Operating Temperature : +150 °C
- Minimum Operating Temperature : -55 °C
- Peak Forward Voltage : 1.1V
- Peak Reverse Current : 5µA
- Length : 28.8mm
- Height : 7.62mm
- CODE No.:165-2403
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-7790-06 TE Connectivity AMPLIMITE 109 Series Series Straight Military Crimp D-Sub Connector, Plug, 50 Pin 1757819-5
model: 63-7790-06
brand: TE Connectivity
Electronic/Electrical Parts and Controll Equipments
Electronic/Electrical Parts and Controll Equipments

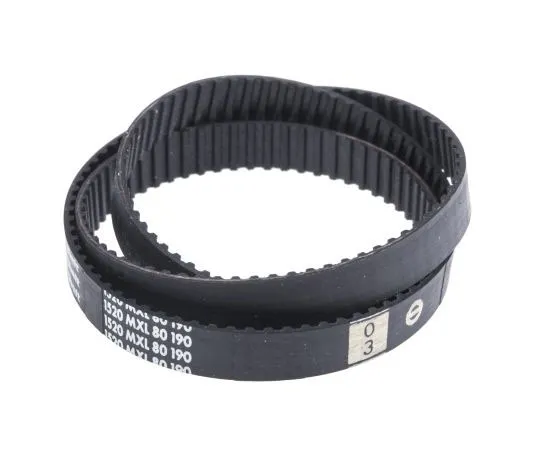

63-7968-26 RS PRO, Timing Belt, 190 Teeth, 386.08mm Length X 6mm Width 778-5095
