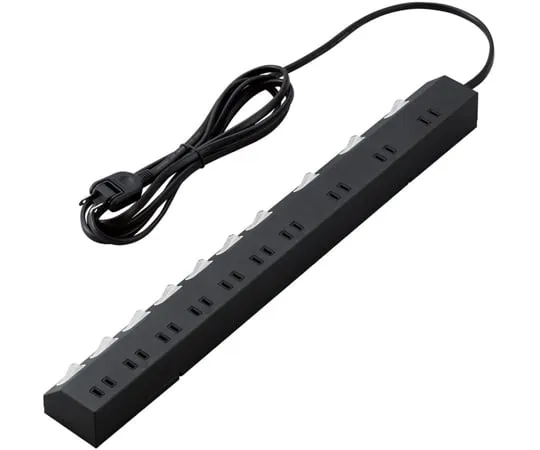

65-0586-88 Lightning Guard Tap Individual Switch with Dust Prevention Shutter with Rotating Legs Fixed & Hangable 10 units 2.5 m Black ECT-1625BK
dissectiontoolsandsupplies

65-0586-88 Lightning Guard Tap Individual Switch with Dust Prevention Shutter with Rotating Legs Fixed & Hangable 10 units 2.5 m Black ECT-1625BK

model: 65-0586-88
brand: ELECOM CO., LTD

Product Description

Product Model: 65-0586-88Product Brand: ELECOM CO., LTD […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 65-0586-88
Product Brand: ELECOM CO., LTD

Features

  • It is a 2-pin type 10 unit tap with an individual switch that can switch ON/OFF for each insertion port and save standby power.
  • The individual switches are arranged diagonally so that they do not interfere with the connection of a large AC adaptor.
  • By expanding the leg parts, the tap will not roll over easily even when a heavy AC adapter or the like is connected.
  • The leg parts are equipped with a 10 mm diameter hanging hole, a 5 mm diameter screw fixing hole, and a cross shaped Dharma hole on the bottom, and can be hung or fixed to a wall with the included tapping screws.
  • To make it easy to *** even with a large AC adapter, the 3 consecutive units at one *** are arranged so that the intermediate distance between the adjacent insertion ports is 57 mm.
  • Equipped with a "dust prevention shutter" to prevent dust from entering when the plug is not inserted.
  • The insertion port ***s a thermosetting resin with excellent heat resistance, which is difficult to melt in the event of heat generation, and is effective in preventing electric fires.
  • Equipped with elements (varistors) that absorb lightning surges of up to 12500 V (based on the JEC210/212 standard) ca***d by induced lightning, the devices are protected.
  • * Performance will deteriorate dep***ing on the received voltage and the number of times.
  • The power cord ***s a double tethered cord that conforms to the Japan Wiring System Manufacturers Association (JWDS0010), which is effective in preventing electric shock and fire ca***d by broken wires and tearing.
  • The 2-pin type plug is equipped with an insulating sleeve that is effective in preventing fires ca***d by tracking phenomena.
  • Uses a 180° swing plug for easy wiring in tight spaces.

Spec

  • Main body socket shape: 2 pins
  • Number of body slots: 10
  • Plug Specifications: 2-pin
  • Cord length: 2.5 m
  • Rating: Up to 125 V/15 A/1500 W
  • Switch: Yes (individual switch)
  • Lightning guard: Yes
  • Dust shutter: Yes
  • Plug with insulated cap: Yes
  • Energization indicator lamp: x (can be checked by individual switch)
  • Double covering: Yes
  • Swing plug: Yes
  • Fixing method: Can be fixed using hanging holes (10 mm in diameter) or screw fixing holes (5 mm in diameter).
  • Color: Black
  • Material: Body/ABS resin, Plug/PVC, Plug/Urea resin
  • External dimensions: width 462 x depth 53 x height 38 mm * Excluding cord and plug parts
  • Mass: About 665 g
  • Available in: Japan only
  • Electrical Appliance and Material Safety Act: PSE compliance
  • Warranty period: 1 year
  • Accessories: 3 fixed tapping screws (M 3.5 x 20)
  • Others: Equipped with rotating legs to prevent falls.
