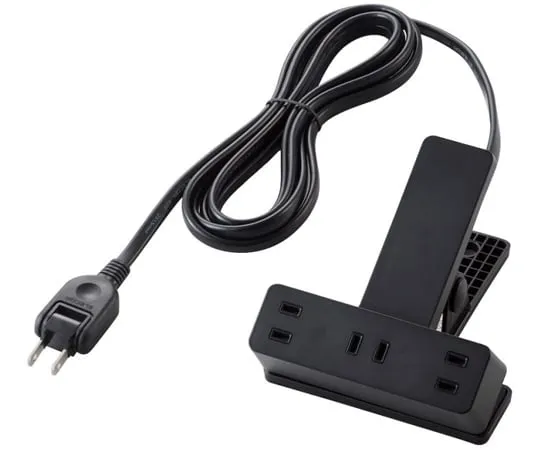

64-9713-94 Clip Tap, 3pcs Swing Plug with Dust Shutter and Lightning Surge 2.5 m Black T-KF03-2325BK
dissectiontoolsandsupplies

64-9713-94 Clip Tap, 3pcs Swing Plug with Dust Shutter and Lightning Surge 2.5 m Black T-KF03-2325BK

model: 64-9713-94
brand: ELECOM CO., LTD

Product Description

Product Model: 64-9713-94Product Brand: ELECOM CO., LTD […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 64-9713-94
Product Brand: ELECOM CO., LTD

Features

  • Equipped with a clip mechanism, it is a 2-pin type 3-piece tap that can be ***d between desks, etc.
  • It is convenient to set up and *** temporarily when teleworking or doing homework at a dining table where taps cannot be ***d permanently.
  • Can be installed on 15~35 mm thick plates. When installing, make sure that the inlet is facing upward.
  • The ground surface with the board is rubber type, which prevents scratches and prevents slipping.
  • The lower grip is equipped with a 10 mm diameter hanging hole that can be hung on a hook on the wall when not in ***.
  • It is equipped with a "dust prevention shutter" to prevent dust from entering when the plug is not inserted.
  • The insertion port ***s a thermosetting resin with excellent heat resistance, which is difficult to melt in the event of heat generation, and is effective in preventing electric fires.
  • In order to prevent interference with the adjacent insertion port even when a large plug such as an AC adapter is connected, the insertion port is arranged in the center and at both ***s in different directions.
  • Equipped with an element (varistor) that absorbs lightning surges up to 12500 V ca***d by induced lightning, it protects connected equipment. (* The maximum surge voltage of 12500 V is based on the JEC210/212 standard.). The performance deteriorates dep***ing on the voltage and the number of times received. )
  • The 2-pin type plug is equipped with an insulating sleeve that is effective in preventing fires ca***d by tracking phenomena.
  • Uses a 180° swing plug for easy wiring in tight spaces.
  • The power cord ***s a double tethered cord that conforms to the Japan Wiring System Manufacturers Association (JWDS0010), which is effective in preventing electric shock and fire ca***d by broken wires and tearing.
  • The clip shape allows easy temporary fixing to desks.

Spec

  • Body Insertion Port Shape: 2 pin
  • Unit Insertion Port: 3 inlets
  • Plug Specifications: 2 pin
  • Cord Length: 2.5 m
  • rating: Up to 125 V/15 A/1500 W
  • Lightning guard: Yes
  • Dust shutter: ○
  • Plug with insulated cap: ○
  • Double coverage: ○
  • Swing plug: Yes
  • Fixing method: Temporary fixing using clip (15 to 35 mm compatible) and suspension hole (φ 10 mm) is possible.
  • Color: Black
  • Material: Body/ABS Plastic , Plug/PVC , Insertion Port/urea resin
  • external dimensions : Width 110 x Depth 140 x Height 80 mm
  • *Excluding cord portion and plug portion
  • Weight: about 300 g
  • Available regions: Japan only
  • Electrical Appliances and Materials Safety Act: PSE Compliant
  • Warranty period: 1 year
