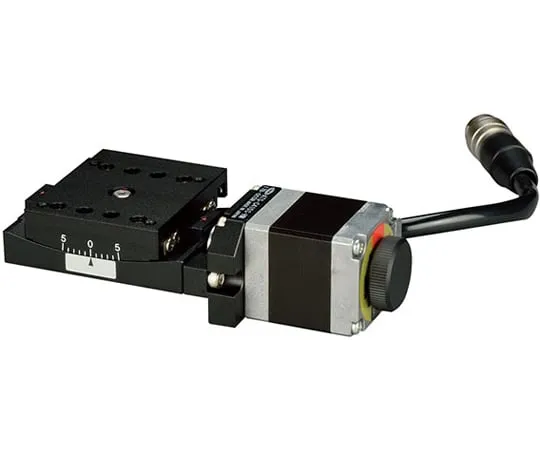

64-9483-08 Inclined Stage Feed Screw Type 40 mm x 40 mm ±5° ATS-C410C-HM
Product Description
Product Model: 64-9483-08Product Brand: CHUO PRECISION […]
Contact Us
Product Details
Product Model: 64-9483-08
Product Brand: CHUO PRECISION INDUSTRIAL Co., Ltd.
Features
- Tilt stage with different pivot height and movement.
- The unique composite coupling mechanism enables fine and very smooth operation.
- It can be widely ***d for precision positioning of cameras, sensors, etc.
Spec
- Stage Surface: 40 mm x 40 mm
- Displacement: +/- 5 deg.
- Resolution: 0.000591°
- moving guides: V-grooves and cross rollers
- Moving Mechanism/Feed Method: Combined Coupling/Feed Screw
- Positioning accuracy: 0.03°
- Repeatability: ±0.002°
- Load Capacity: 29.4 N (3kgf)
- Main Material/Surface Treatment: Aluminum Alloy/Black Anodized Crepe
- Move Direction: Tilt 1 Direction
- Mass: 0.4 kg
