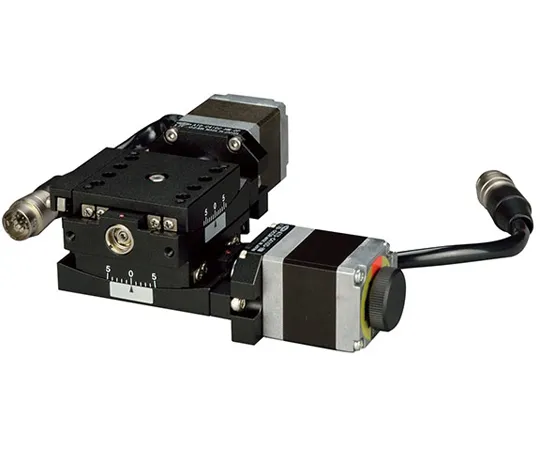

64-9483-04 2-Axis Tilting Stage Feed Screw Type 40 mm x 40 mm Top Shaft ±6°, Bottom Shaft ±5° ATD-C410C-HM
Product Description
Product Model: 64-9483-04Product Brand: CHUO PRECISION […]
Contact Us
Product Details
Product Model: 64-9483-04
Product Brand: CHUO PRECISION INDUSTRIAL Co., Ltd.
Features
- Tilt stage with different pivot height and movement.
- The unique composite coupling mechanism enables fine and very smooth operation.
- It can be widely ***d for precision positioning of cameras, sensors, etc.
Spec
- Stage Surface: 40 mm x 40 mm
- Movement: Upper Axis ±6°, Lower Axis ±5°
- Resolution: Upper Axis 0.000725°, Lower Axis 0.000591°
- moving guides: V-grooves and cross rollers
- Moving Mechanism/Feed Method: Combined Coupling/Feed Screw
- Positioning accuracy: 0.03°
- Repeatability: ±0.002°
- Load Capacity: 19.8 N (2kgf)
- Main Material/Surface Treatment: Aluminum Alloy/Black Anodized Crepe
- Move Direction: Slant 2 Direction
- Mass: 0.8 kg
