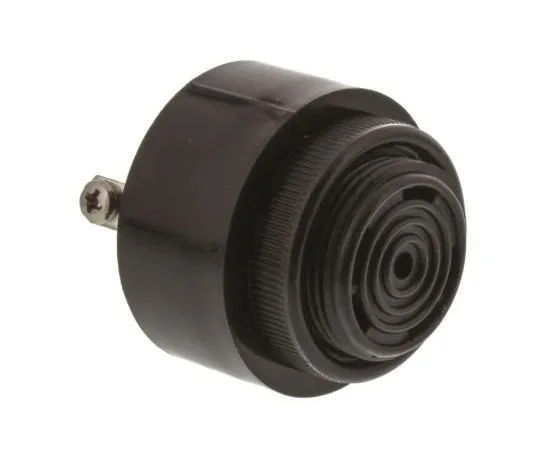

63-7643-02 RS PRO 85dB Screw Mount Slow Pulse Internal Buzzer, 2300 → 3300 Hz 622-1483
Product Description
Product Model: 63-7643-02Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-7643-02
Product Brand: RS PRO
Features
- Panel hole mount pulsed tone buzzer screw terminals. Panel hole mounting pulsed tone buzzer Screw terminal connections High output levels Internal circuitry for ac/dc operation
Spec
- Quantity:1piece
- Mounting Type : Screw Mount
- Minimum Supply Voltage : 6V ac/dc
- Maximum Supply Voltage : 28V ac/dc
- Sound Level : 85dB
- Drive Type : Internal
- Tone Type : Slow Pulse
- Diameter : 42.5mm
- Height : 33mm
- Dimensions : 42.5 (Dia.) x 33mm
- Minimum Operating Temperature : -30°C
- Maximum Operating Temperature : +85°C
- Maximum Frequency : 3.3kHz
- Supply Current : 23mA
- CODE No.:622-1483
