Electronic/Electrical Parts and Controll Equipments

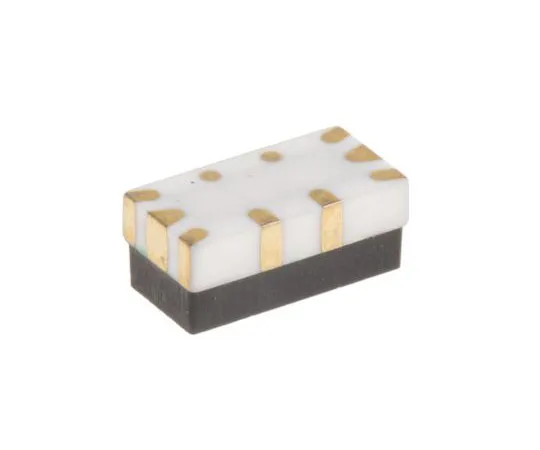

63-7642-82 SPNO Reed Relay, 5V dc CRR05-1A
Product Description
Product Model: 63-7642-82Product Brand: Meder Features […]
Contact Us
Product Details
Product Model: 63-7642-82
Product Brand: Meder
Features
- SPST SMT Reed Relay. From Meder, this CRR Series micro-miniature, surface mount reed relay has one normally open contact and is capable of withstanding reflow operations up to 260°C. Featuring a leadless design that eliminates lead skewing in surface mouting, the CRR Series relay is encased in a ceramic thermoset moulded package with gold plated contact pads. ; Low profile ; Low thermal offset typical 1μV ; Typical insulation resistance 1014 ; Extremely small size
Spec
- Quantity:1piece
- Contact Configuration : SPNO
- Coil Voltage : 5V dc
- Mounting Type : Surface Mount
- Maximum Switching Voltage AC : 170V ac
- Maximum Switching Voltage DC : 170V dc
- Coil Power : 167mW
- Coil Resistance : 150 Ω
- Length : 8.6mm
- Height : 3.4mm
- Depth : 4.4mm
- Dimensions : 8.6 x 4.4 x 3.4mm
- Isolation Coil To Contact : 1.5kV dc
- Minimum Operating Temperature : -40°C
- CODE No.:622-0799
