Features

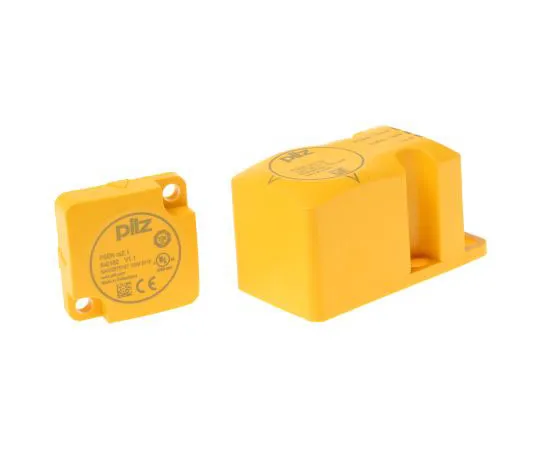

• EN60947-5-3 standard is only met if entire system consisting of safety switch (PSENcode), actuator (PSENcode) and a safety monitoring module (PNOZ X or PNOZmulti) is ***d. EN954-1 (Cat 4), EN60204-1, EN60947-5-3. CE, cULus Listed, TÜV, FCC, IC. Actuator. When the safety gate is closed the switch provides 2 N/C semiconductor outputs. PSENcode Large Non-Contact Safety Switch, Fully Coded. The PSEN cs2.1p safety switch is fully coded and will only switch with an actuator from the PSEN cs2.1 series. The actuator must be taught and can be taught up to a maximum of 8 times but with only 1 actuator at a time. Series connection - you can connect more than 10 safety switches in sequence to Cat 4 of EN954-1 The switch reacts to a single actuator but can be taught a new actuator up to 8 times if operational damage occurs 5 directions of actuation M12 connection, 8-pin
