Spec

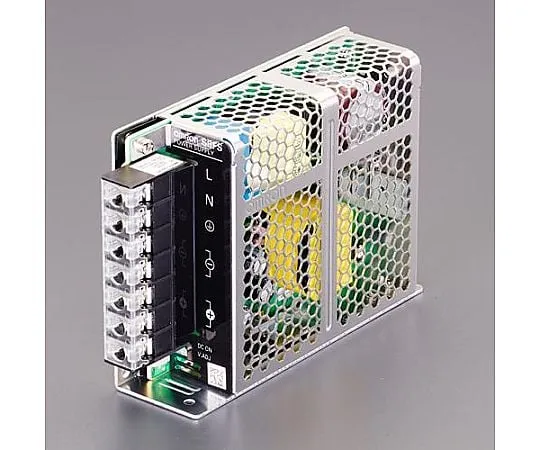

• Type: S8FS-G01505C
• Output voltage: 5 VDC
• Output capacity: 15 W
• Input voltage: 100 to 240 V (80 DC to 370 V shared)
• I/O connections: terminal strips
• terminal strip types: screw terminals
• Efficiency: 80% typ.　(AC100V input) 80% typ.　(200 VAC input) 80% typ.　(230 VAC input)
• Input voltage tolerance: 85 VAC to 264 V (single phase) DC 80 to 370 V
• Frequency: 50/60 Hz (47 to 450 Hz)
• Input Current: 0.32 A typ.　(AC100V input) 0.2 A typ.　(200 VAC input)
• Leak current: 0.5 mA or less (AC100V input), 1 mA or less (200 VAC input)
• Inrush current: 14 A typ.　(25 °C cold start) (AC100V input) 28 A typ.　(at 25 °C cold start) (200 VAC input)
• Output current: 3 A
• Ripple noise voltage: 40 mV (p-p) or less at AC100 to 240 V input
• Input variation: 0.5% or less
• Load fluctuation: 1% or less
• Ambient temperature fluctuation: 0.05%/°C or less
• start-up time: 1000 ms or less (with AC100V input) 1000 ms or less (with 200 VAC input)
• Output hold time: 15 ms typ.　(AC100V input) 75 ms typ.　(200 VAC input)
• Overcurrent protection: Yes, automatic recovery
• Overvoltage protection: Yes, disconnect recovery
• Overheat protection: None
• Parallel Operation: No (However, backup Operation is available and external diode is required.)
• Output indicator lamp: Yes (color: green)
• Remote Sensing Remote Control: None
• Withstand voltage: between (input terminals combined) and (output terminals combined): AC3 kV 1 min Cutoff current 20 mA (input terminals combined) and (PE): AC2 kV 1 min Cutoff current 20 mA (output terminals combined) and (PE): AC1 kV 1 min Cutoff current 20 mA
• insulation resistance: (batch of output terminals) to (batch of input terminals, PE): 100 MΩ or more, 500 VDC
• Vibration Resistance: 10 to 55 Hz Maximum 4.5 G Single Amplitude 0.375 mm 3 Direction 2 h Each
• Elevation: 3000 m
• Operating ambient temperature: -20 to 70 °C (0 to 90%)
• Storage Temperature: -25 to 75 °C (0 to 90%)
• Life expectancy: 10 years or more (rating input, 50% load factor, ambient temperature + 40 °C or less, with standard installation)
• Cooling Method: No Cooling Fan
• Weight: about 250 g
• Front Mounting Type
• Type with Cover
