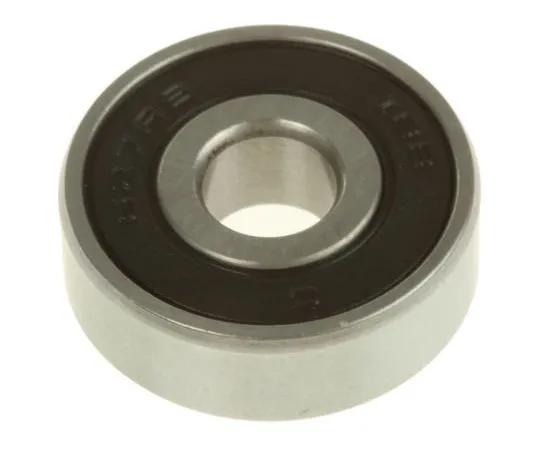

63-7639-98 7mm Miniature Ball Bearing 22mm O.D 618-9935
Product Description
Product Model: 63-7639-98Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-7639-98
Product Brand: RS PRO
Features
- RS Pro Sealed Deep Groove (Popular Metric) Single Row Bearings. A range of RS Pro single row, deep groove ball bearings, offering versatility and overall high performance. RS Pro sealed ball bearings are fitted with two synthetic rubber seals to prevent dirt and other items entering the bearing. These ball bearings are primarily int***ed for *** where the inner ring rotates. Within this RS Pro range, we offer internal diameters from 3mm to 50mm. This huge variety of sizes will ensure that you find the perfect ball bearing for your application.. Other Information:. Why Choose a Sealed Ball Bearing? Sealed ball bearing offer reliability as they reduce the risk of dust and dirt entering the ball bearing mechanism. They also **** to preserve the lubricant within the bearing and keep it running smoother, for longer. Why Choose a Single Row Deep Groove Ball Bearing? This type of ball bearing it often the most popular beca*** of its versatility. They are ideal for high speeds and can handle a good radial load capacity, all will very little maintenance required. Deep Groove refers to the race (the groove where the balls rest). There is therefore a larger space between the inner and outer rings, than the diameter of the ball. This leaves space for the rubber seals.
Spec
- Quantity:1piece
- Inside Diameter : 7mm
- Outside Diameter : 22mm
- Ball Bearing Type : Miniature
- Race Width : 7mm
- End Type : Sealed
- Number of Rows : 1
- Static Load Rating : 1.379kN
- Material : Steel
- Race Type : Plain
- Dynamic Load Rating : 3.287kN
- Bore Type : Parallel
- CODE No.:618-9935
