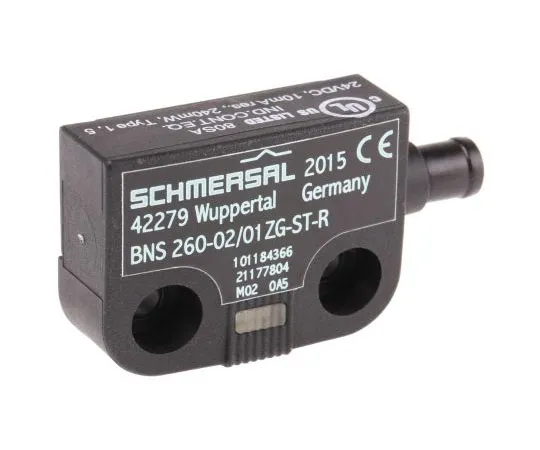

63-7639-57 BNS260 Magnetic Safety Switch, Plastic, 24 V dc BNS 260-02/01ZG-ST-R
Product Description
Product Model: 63-7639-57Product Brand: Schmersal Featu […]
Contact Us
Product Details
Product Model: 63-7639-57
Product Brand: Schmersal
Features
- EN60947-5-3 standard is only met if entire system consisting of safety sensor (BNS260), magnet (BPS260) and a safety monitoring module (AES) is ***d. IEC/EN60947-5-3, BG-GS-ET-14. Actuating magnet not included, see accessories, for example ; 617-5374 617-5374 // ; 617-5380 617-5380. BNS 260, Miniature Coded. Smallest design Actuation only possible with BPS260, available separately Left-hand or right-hand side versions for door-mounting Control category up to 4 to EN954-1 IP67 protection Connector 8 mm, 6-pole, latching interlocking Dimensions: L13 x W26 x H36 mm
Spec
- Quantity:1piece
- Supply Voltage : 24 V dc
- Housing Material : Plastic
- Connection Type : M8
- Series : BNS260
- IP Rating : IP67
- Actuator Included : No
- Width : 36mm
- CODE No.:617-5239
