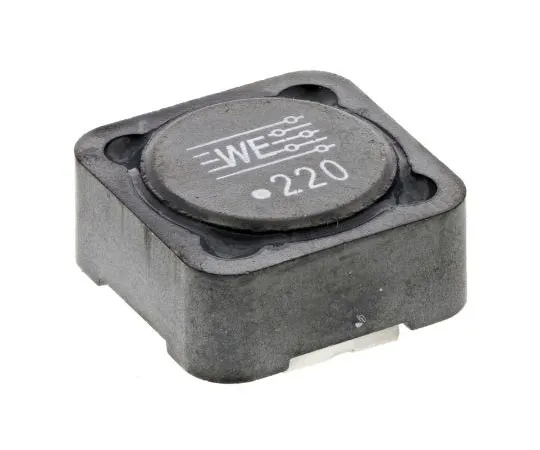

63-7639-20 Wurth WE-PD Series Shielded Wire-wound SMD Inductor with a Ferrite Core, 22 μH ±20% 3.37A Idc 744771122
model:
63-7639-20
brand:
Wurth Elektronik
Product Description
Product Model: 63-7639-20Product Brand: Wurth Elektroni […]
Contact Us
Product Details
Product Model: 63-7639-20
Product Brand: Wurth Elektronik
Features
- SMD Power Inductors Type WE-PD (Metal Base 1260 - 1210). Magnetically shielded version which results in a low leakage field High storage capacity Low self-losses Highest possible current loading for SMD Inductors Operating temperature -40 to +125°C Recomm***ed solder profile: Reflow Applications: Switching regulators with low operating voltages, Integrated DC/DC-converter, Perfectly suitable for switching regulators with extremely high efficiency (>86%), Graphic cards
Spec
- Quantity:1piece
- Inductance : 22 μH
- Maximum DC Current : 3.37A
- Length : 12mm
- Depth : 12mm
- Height : 6mm
- Dimensions : 12 x 12 x 6mm
- Shielded : Yes
- Tolerance : ±20%
- Maximum DC Resistance : 36mΩ
- Series : WE-PD
- Core Material : Ferrite
- Maximum Self Resonant Frequency : 13MHz
- Minimum Operating Temperature : -40°C
- CODE No.:617-1568
