Electronic/Electrical Parts and Controll Equipments
63-7639-09 Wurth WE-TPC Series Shielded Wire-wound SMD Inductor with a Ferrite Core, 100 μH ±30% Wire-Wound 250mA Idc 744031101
model:
63-7639-09
brand:
Wurth Elektronik
Product Description
Product Model: 63-7639-09Product Brand: Wurth Elektroni […]
Contact Us
Product Details
Product Model: 63-7639-09
Product Brand: Wurth Elektronik
Features
- WE-TPC Series 3.8mm Square Magnetically Shielded Wire Wound Chokes. WE-TPC Series is extremely flat power inductor with high current capability Magnetically shielded which results in a low leakage field Operating temperature: –40 to +125°C Applications: Portable power (e.g. PDA, digital camera, PCMCIA cards and displays); DC/DC converter; Embedded PC; Mobile data gathering, telemetric
Spec
- Quantity:1set(1000pieces)
- Inductance : 100 μH
- Maximum DC Current : 250mA
- Length : 3.8mm
- Depth : 3.8mm
- Height : 1.65mm
- Dimensions : 3.8 x 3.8 x 1.65mm
- Shielded : Yes
- Tolerance : ±30%
- Maximum DC Resistance : 2.4Ω
- Series : WE-TPC
- Core Material : Ferrite
- Maximum Self Resonant Frequency : 10MHz
- Minimum Operating Temperature : -40°C
- CODE No.:163-3578
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-7512-24 Electrotherm PT100 Sensor, -50°C min +200°C max, 40mm Probe Length x M8 Probe Diameter K4-E-3LS-200
model: 63-7512-24
brand: Electrotherm
Electronic/Electrical Parts and Controll Equipments

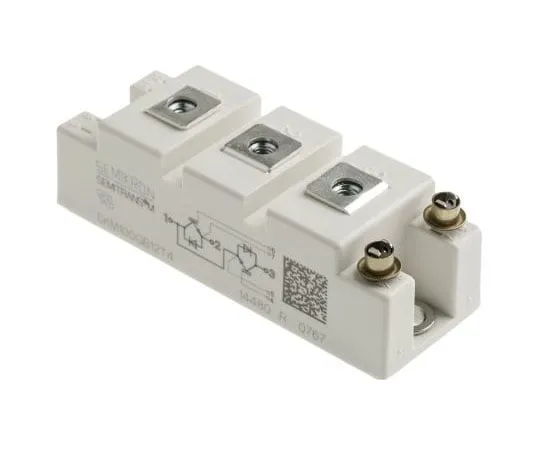

63-7694-09 Semikron SKM100GB12T4 , SEMITRANS2 , N-Channel Dual Half Bridge IGBT Module, 160 A max, 1200 V, Panel Mount SKM100GB12T4
