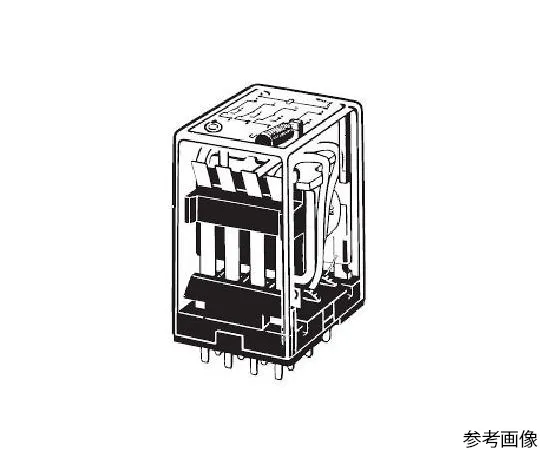

64-5652-25 Printed circuit board terminal mini power relay 100/110 DC MY4-02-DC100110V
Product Description
Product Model: 64-5652-25Product Brand: OMRON Corporati […]
Contact Us
Product Details
Product Model: 64-5652-25
Product Brand: OMRON Corporation
Spec
- Mounting: Printed circuit boards
- Number of contact poles: 4
- Coil Rating/DC Voltage: DC 100/(110) V
- Coil rating/current: 8.7/9.6 mA
- Rated/coil operating voltage: 80% or less
- Rated/coil return voltage: 10% or more
- Contact Rating/Resistance Load DC: 24 VDC 3 A
- Contact Rating/Resistance Load AC: 220 VAC 3 A
- Contact mechanism: Single
- Protection structure:
- Size: 28 mm x 21.5 mm x 36 mm
- Operating temperature range - (deg. C): -55 to + 70 deg. C
- Remarks:
