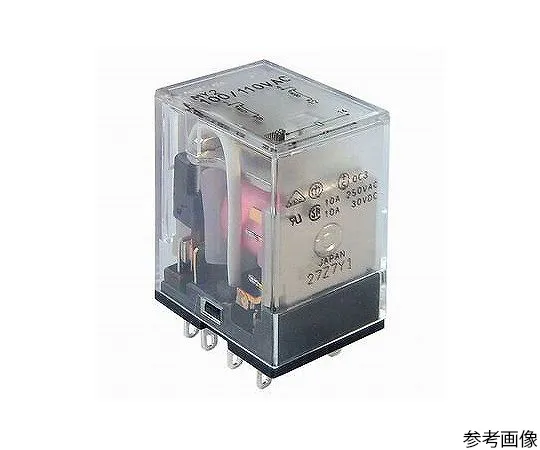

64-5651-90 Mini Power Relay AC 200/220 V MY2-CR-AC200220V
Product Description
Product Model: 64-5651-90Product Brand: OMRON Corporati […]
Contact Us
Product Details
Product Model: 64-5651-90
Product Brand: OMRON Corporation
Spec
- implementation: plugins
- Number of contact poles: 2c
- Coil rating and voltage: 200/220 VAC
- Coil rating/current: 6.2/6.8 mA
- Rating/Coil/Operating Voltage: 80% or less
- Rating/Coil/Return Voltage: 30% or more
- Contact Rating/Resistance Load DC: 24 V5 A DC
- Contact Rating/Resistance Load AC: 220 V5 A AC
- Contact mechanism: Single
- Size: 28 mm x 21.5 mm x 36 mm
- Operating temperature range: -55 to + 70 degrees C
- Remarks: Built-in CR circuit type
