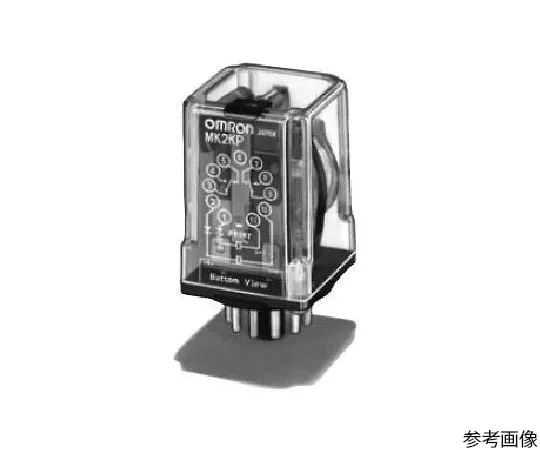

64-5651-80 Latching Relay DC 100 V MK2KP-DC100V
Product Description
Product Model: 64-5651-80Product Brand: OMRON Corporati […]
Contact Us
Product Details
Product Model: 64-5651-80
Product Brand: OMRON Corporation
Spec
- implementation: plugins
- Number of contact poles: 2 poles
- Coil rating/voltage: 100 VDC
- Coil rating/current: 24 mA when set/10.3 mA when reset
- Rating/Coil/Operating Voltage:
- Rating/Coil/Return Voltage:
- Contact Rating/Resistance Load DC: 24 VDC 3 A
- Contact Rating/Resistance Load AC: 220 V5 A AC
- Contact mechanism: Single
- Size: 34.5 mm x 34.5 mm x 52.5 mm
- Operating temperature range: -10 to + 40 degrees C
- Remarks:
