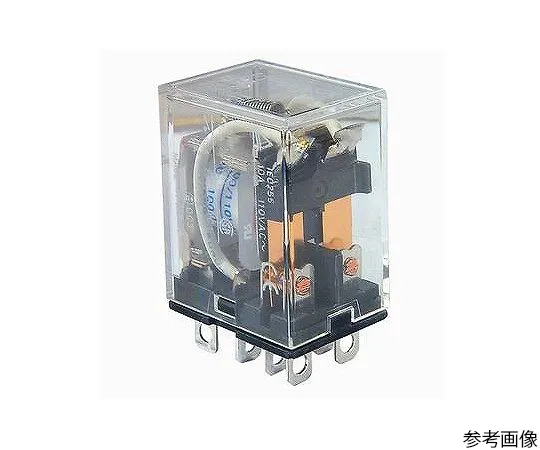

Spec

• implementation: plugins
• Number of contact poles: 2 poles
• Coil rating and voltage: 100/110 VDC
• Coil rating/current: 9.1/10 mA
• Rating/Coil/Operating Voltage: 80% or less
• Rating/Coil/Return Voltage: 10% or more
• Contact Rating/Resistance Load DC: 24 VDC 10 A
• Contact Rating/Resistance Load AC: 110 VAC 10 A
• Contact mechanism: Single
• Size: 28 mm x 21.5 mm x 36 mm
• Operating temperature range: -25 to + 55 degrees C
• Remarks: Standard form
