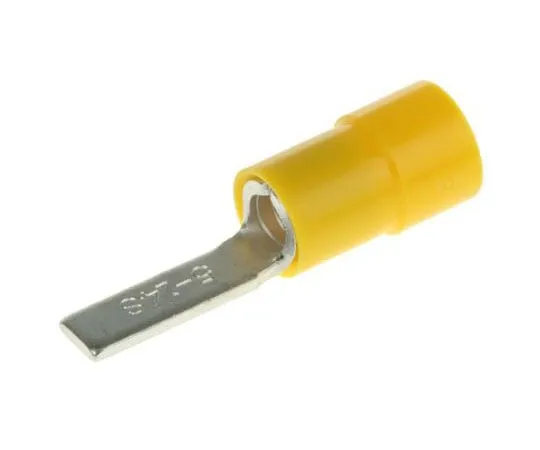

63-7636-68 RS PRO No Insulated Crimp Blade Terminal 14mm Blade Length, 4mm² to 6mm², 12AWG to 10AWG, Yellow 613-9823
Product Description
Product Model: 63-7636-68Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-7636-68
Product Brand: RS PRO
Features
- RS Pro Insulated Crimp Blade Terminals. An RS Pro series of insulated crimp blade terminals made from copper with flared vinyl insulation. These insulated crimp blade wire connectors are colour coded for *** with different wire sizes. All models are highly reliable and excellent quality. Features ; Benefits. Red 0.5 - 1.5 mm² Blue 1.5 - 2.5 mm² Yellow 2.5 - 6.5 mm²
Spec
- Quantity:1bag(100pieces)
- G***er : Male
- Insulation : Insulated
- Insulation Material : Vinyl
- Shrouded/Unshrouded : Unshrouded
- Maximum Wire Size mm² : 6mm²
- Minimum Wire Size AWG : 12AWG
- Overall Length : 27mm
- Blade Length : 14mm
- Blade Width : 4mm
- Blade Thickness : 1mm
- Hooked : No
- Colour : Yellow
- Contact Plating : Tin
- Contact Material : Copper
- CODE No.:613-9823
