Features

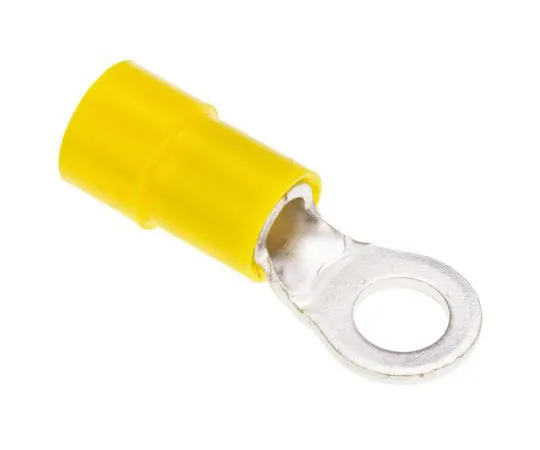

• RS PRO Vinyl Insulated Crimp Ring Terminals. From RS PRO a high-quality insulated crimp ring terminal, also known as a ring connector or cable lug. Ring crimp terminals are ***d for connecting an electrical cable or wire to a stud or a post on an electrical component such as a battery terminal. This ring terminal is made from highly conductive copper and then tin plated for maximum electrical conductivity and corrosion resistance. A colour coded vinyl insulation provides protection to the terminal and aids quick identification of the terminal size. Once correctly crimped onto a wire or cable this ring terminal will provide a secure and reliable electrical connection. Features and Benefits. Copper body material for high conductivity and easy crimping Tin plating for resistance to corrosion, added strength and excellent conductivity Vinyl insulation for electrical insulation and terminal protection Colour coded insulation for easy identification of terminal size Expanded insulation entry for easy wire insertion Maximum operating temperature of 150°C. Applications. These insulated crimp ring wire connectors are ***d in a wide range of industries for connecting wires to electrical components. Applications include wiring in industrial control systems and industrial machines, automotive applications, communication equipment, power supplies and domestic appliances. Selecting the Correct Ring Terminal Size. When selecting the right ring terminal for your application, you should consider the following:. The wire gauge mm (metric) or AWG (American Wire Gauge) of the wire or cable you are using The stud size to which you will be connecting the ring terminal. The inner diameter of the ring terminal. How to Crimp a Ring Terminal. Firstly, select the correct sized ring terminal. Strip the *** of the wire and cut it to the same length as terminal. Insert the wire into the terminal barrel making sure no bare wire is visible. The crimp terminal is then ready to be crimped on to the *** of the wire. When crimping a wire terminal, pliers or a ratchet can be ***d but, for a better quality crimp, it is better to *** a ratchet crimping tool. A ratchet crimping tool is preferable as the handles will remain locked until a full crimp cycle is completed which will prevent partial crimps. Insert the barrel of the ring terminal into the appropriate crimping section (indicated by sizes marked on the tool). Squeeze the tool handles together until the ratchet releases. The crimped ring terminal can now be placed over the stud or post and secured in place with a nut or by soldering. Suitable Crimp Tool. For suitable ratchet crimp tool please see RS PRO stock number ; 125-1964 125-1964
