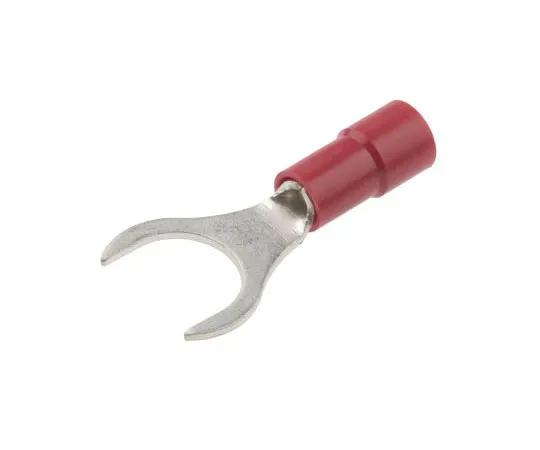

63-7636-52 RS PRO Insulated Crimp Spade Connector, 0.5mm² to 1.5mm², 22AWG to 16AWG, M8 Stud Size Vinyl, Red 613-9485
Electronic/Electrical Parts and Controll Equipments

63-7636-52 RS PRO Insulated Crimp Spade Connector, 0.5mm² to 1.5mm², 22AWG to 16AWG, M8 Stud Size Vinyl, Red 613-9485

model: 63-7636-52
brand: RS PRO

Product Description

Product Model: 63-7636-52Product Brand: RS PRO Features […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-7636-52
Product Brand: RS PRO

Features

  • RS Pro Insulated Spade Connectors. RS Pro range of insulated crimp spade terminals made from copper with a tin plating. These spade connectors have vinyl or nylon insulation with a flared design for easy wire insertion. The insulation of these crimp spade terminals is colour coded to correspond with the wire size they are ***d with. All models are highly reliable and excellent quality. Features ; Benefits. Various metric sizes available. Available in Red, Yellow and Blue. Each colour corresponds to different wire sizes

Spec

  • Quantity:1bag(100pieces)
  • Insulation : Insulated
  • Width : 11.6mm
  • Minimum Wire Size mm² : 0.5mm²
  • Maximum Wire Size mm² : 1.5mm²
  • Minimum Wire Size AWG : 22AWG
  • Maximum Wire Size AWG : 16AWG
  • Stud Size : M8
  • Colour : Red
  • Overall Length : 25.4mm
  • Contact Material : Copper
  • Thickness : 0.75mm
  • CODE No.:613-9485
