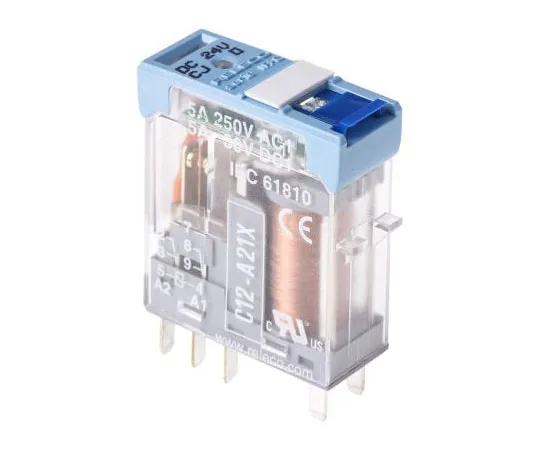

63-7636-34 RelecoC12 DPDT Non-Latching Relay PCB Mount, 24V dc Coil, 5A C12A21X24D
Product Description
Product Model: 63-7636-34Product Brand: Releco Features […]
Contact Us
Product Details
Product Model: 63-7636-34
Product Brand: Releco
Features
- 5A DPCO - C12 Series. Robust industrial terminals LED indication and mechanical flag indicator Dual function test button, push to test or lift to latch Maximum switching voltage of 250Vac Operating temperature range: -20 to +60°C. Accessories available separately include 16mm wide sockets, bridge bar for linking coil A2 connection and bridge bars for linking contact side
Spec
- Quantity:1piece
- Coil Voltage : 24V dc
- Coil Power : 700mW
- Coil Resistance : 742 Ω
- Isolation Coil To Contact : 5kV
- Contact Configuration : DPDT
- Mounting Type : PCB Mount
- Switching Current : 5A
- Terminal Type : Quick Connect
- Number of Poles : 2
- Maximum Switching Voltage AC : 250V ac
- Maximum Switching Voltage DC : 250V dc
- Height : 35.4mm
- CODE No.:613-8022
