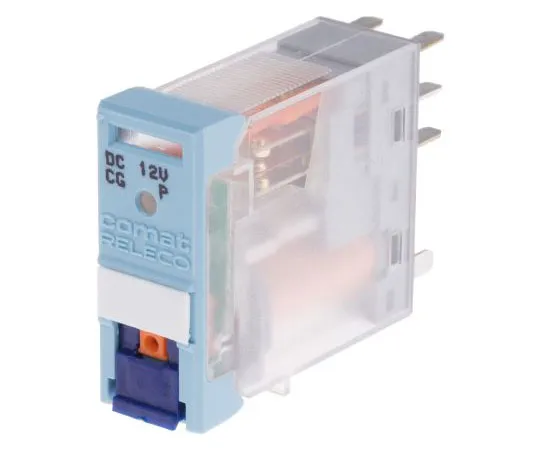

63-7636-33 RelecoC12 DPDT Non-Latching Relay PCB Mount, 12V dc Coil, 5A C12A21X12D
Product Description
Product Model: 63-7636-33Product Brand: Releco Features […]
Contact Us
Product Details
Product Model: 63-7636-33
Product Brand: Releco
Features
- 5A DPCO - C12 Series. Robust industrial terminals LED indication and mechanical flag indicator Dual function test button, push to test or lift to latch Maximum switching voltage of 250Vac Operating temperature range: -20 to +60°C. Accessories available separately include 16mm wide sockets, bridge bar for linking coil A2 connection and bridge bars for linking contact side
Spec
- Quantity:1piece
- Coil Voltage : 12V dc
- Coil Power : 700mW
- Coil Resistance : 224 Ω
- Isolation Coil To Contact : 5kV
- Contact Configuration : DPDT
- Mounting Type : PCB Mount
- Switching Current : 5A
- Terminal Type : Through Hole
- Maximum Switching Voltage AC : 250V
- Maximum Switching Voltage DC : 30V
- Depth : 12.5mm
- CODE No.:613-8016
