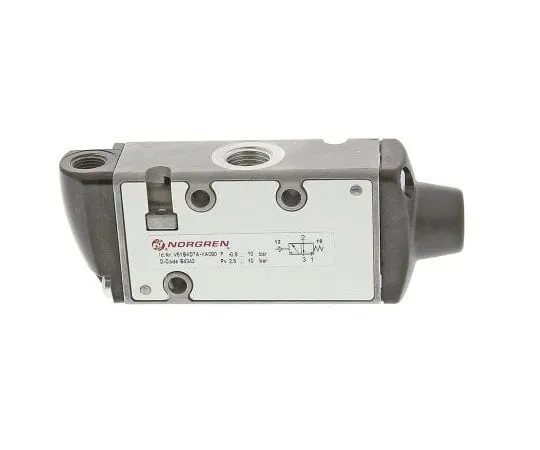

63-7636-10 Norgren 3/2 Pneumatic Control Valve Pilot/Spring G 1/4 V61 Series V61B4D7A-XA090
Product Description
Product Model: 63-7636-10Product Brand: Norgren Feature […]
Contact Us
Product Details
Product Model: 63-7636-10
Product Brand: Norgren
Features
- Compressed air, whilst generally considered a safe source of energy, must always be treated with caution and under no circumstances be ***d for any other purposes than that for which it is int***ed. Pilot valves are sometimes referred to as pressure actuated valves. Solenoid coil operators and connector plugs must be ordered. XF Series V60 - V63. High flow rate in-line ported valves Small volumetric size Maintenance free and easy assembly Low power consumption IP65 Protection Rating Medium: air, filtered, lubricated/dry
Spec
- Quantity:1piece
- Manufacturer Series : V61
- Function : 3/2
- Connection Port Thread : G 1/4
- Actuation Type : Pilot/Spring
- Body Material : Aluminium
- Maximum Flow Rate : 1300L/min
- Minimum Operating Pressure : -0.9bar
- Minimum Operating Temperature : -10°C
- Maximum Operating Temperature : +50°C
- Thread Size : 1/4in
- CODE No.:613-3459
Related product recommendations
You may also be interested in the following products
63-4958-58 Vishay 2.2μF 63V dc Aluminium Electrolytic Capacitor, Through Hole 5 (Dia.) x 11mm +85°C 5mm 2mm MAL203858228E3
model: 63-4958-58
brand: Vishay
63-4656-23 Wire splice Connector insulated bat red 34070
model: 63-4656-23
brand: TE Connectivity
63-7326-12 Avery Silver Address Label, 63.5 x 29.6mm, Pack of 20 L6011-20
model: 63-7326-12
brand: Avery

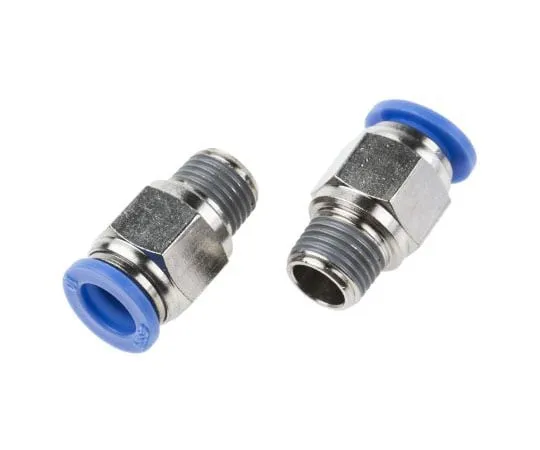

63-8079-68 RS PRO Pneumatic Straight Threaded-to-Tube Adapter 916-0726
