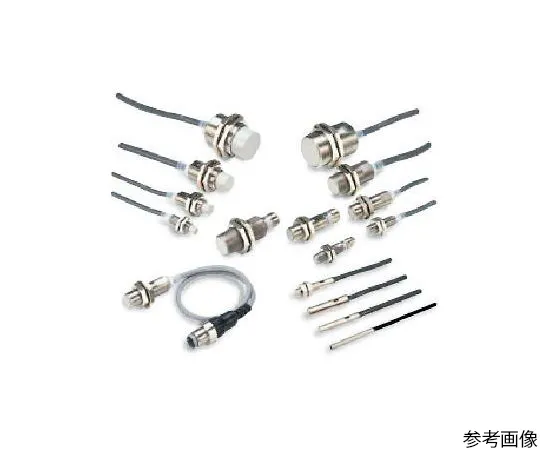

Spec

• Self-diagnostic output function: Yes
• Shape: Shield (M 18)
• Detection distance: 7mm
• Operating mode: NO
• Power supply voltage: 12 ~ 24 VDC ripple (p-p) 10% or less (10 ~ 30 VDC)
• Leakage current: 0.8 mA or less
• Ambient temperature: Operating: -25 to + 70 C Storage: -40 to + 85 C (However, it must not be frozen or condensed.)
• Insulation resistance: 50 megohms or more (at 500 VDC mega) between the charging unit and the case
• Withstand voltage: 1000 VAC, 50/60 Hz, 1 min, between charging unit and case
