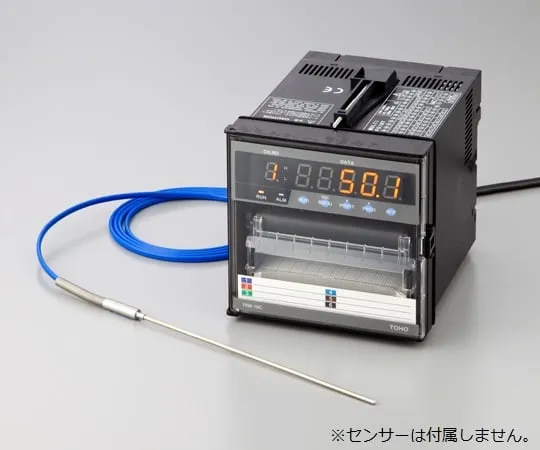

1-5726-01 Small Hybrid Temperature Recorder Trm1006c TRM1006C000T-Z
model:
1-5726-01
category:
toner
Product Description
Product Model: 1-5726-01 Features The compact size of 1 […]
Contact Us
Product Details
Product Model: 1-5726-01
Features
- The compact size of 150 mm depth makes it suitable for panel installation.
- Multi-range is provided as standard, and various input settings can be made for each channel.
Spec
- Model number: TRM1006C000T-Z
- 6 depressor bar type dash recorder
- Input type: Thermocouple, resistance thermometer, DC voltage, DC current 4 - 20mA
- Measurement point: 6
- Vertical feed speed: 5 - 12000mm/h
- Measurement period: 10s/all points
- Power voltage: AC 100 - 240V, 50/60Hz
- Power consumption: 30VA or less
- Recording, print method: Wire dot (6 colors ribbon)
- Size: 144 x 144 x 150mm
- Weight: 1.5kg or less
- Accessories: Power cord for AC100V (3P approximately 2m), Recording paper x 1 volume (16m)
