Electronic/Electrical Parts and Controll Equipments

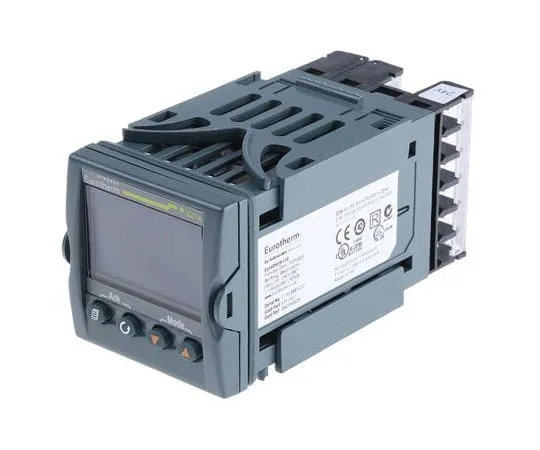

63-7634-62 Eurotherm 3216 PID Temperature Controller, 48 x 48 (1/16 DIN)mm, 3 Output Changeover Relay, Logic, Relay, 24 V ac/dc 3216/CC/VL/LRXX/R
Product Description
Product Model: 63-7634-62Product Brand: Eurotherm Featu […]
Contact Us
Product Details
Product Model: 63-7634-62
Product Brand: Eurotherm
Features
- 3216 1/16 DIN Temperature / Process Controllers. Safety Messaging via 4 digit starburst display for simple visual indication of the process status Programmable with ITools Configuration Software when ***d with configuration clip (stock no. ; 611-8365 611-8365 ) Up to 3 Outputs: Logic I/O, Relay and Analogue can be configured to provide any combination of heat, cool or alarm Universal Inputs -B, J, K, L, N, R, S, T, C, PT100, 0-80mV, 0-20mA, 4-20mA Dimensions: H48 x W48 x D90mm
Spec
- Quantity:1piece
- Output Type : Changeover Relay, Logic, Relay
- Supply Voltage : 24 V ac/dc
- Size : 48 x 48 (1/16 DIN)mm
- Number of Outputs : 3
- Minimum Operating Temperature : 0°C
- Maximum Operating Temperature : +55°C
- Control Type : ON/OFF
- IP Rating : IP65
- Range : Eurotherm 3216
- Panel Depth : 101mm
- CODE No.:611-8422
