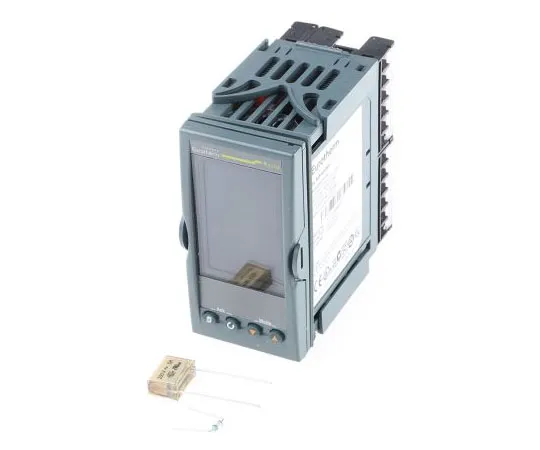

63-7634-57 Eurotherm 3208 PID Temperature Controller, 96 x 48 (1/8 DIN)mm, 4 Output Changeover Relay, Logic, Relay, 85 → 3208/CC/VH/LRRX/R
Product Description
Product Model: 63-7634-57Product Brand: Eurotherm Featu […]
Contact Us
Product Details
Product Model: 63-7634-57
Product Brand: Eurotherm
Features
- 3208 1/8 DIN Temperature / Process Controllers. Safety Messaging and 7 segment universal meter for simple visual indication of the process status Up to 4 Outputs (dep***ing on model): Logic I/O, Relay and Analogue can provide any combination of heat, cool or alarm 1 off Digital Input for alarm acknowledge etc Universal Inputs -B, J, K, L, N, R, S, T, C, PT100, 0-80mV, 0-20mA, 4-20mA Supply voltage: 85 to 264Vac Dimensions: H96 x W48 x D90mm
Spec
- Quantity:1piece
- Output Type : Changeover Relay, Logic, Relay
- Supply Voltage : 85 → 264 V ac
- Size : 96 x 48 (1/8 DIN)mm
- Number of Outputs : 4
- Minimum Operating Temperature : 0°C
- Maximum Operating Temperature : +55°C
- Control Type : ON/OFF
- IP Rating : IP65
- Range : Eurotherm 3208
- Panel Depth : 101mm
- CODE No.:611-8343
