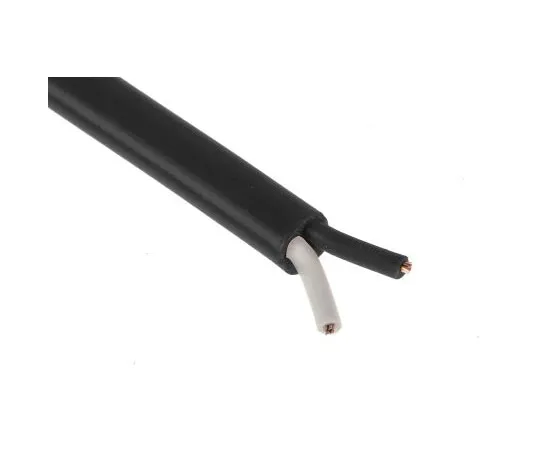

63-7634-50 Extension Cable Type J, -75 → +260 °C 2 Core Unscreened PFA Sheath 50m 611-8056
Product Description
Product Model: 63-7634-50Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-7634-50
Product Brand: RS PRO
Features
- PFA Insulated Flat Pair Extension Cable. Solid or stranded conductors Cores laid flat side by side PFA extruded construction making it easier to work than the PTFE alternative Tolerance class 1 for optimum accuracy IEC colour coded Temperature rating -75 to +250°C
Spec
- Quantity:1set
- Thermocouple Type : J
- Number of Cores : 2
- Length : 50m
- Minimum Operating Temperature : -75°C
- Maximum Operating Temperature : +260°C
- Screened/Unscreened : Unscreened
- Core Strands : 7/0.2 mm
- Insulation Material : PFA
- Cable Shape : Multicore
- Number of Strands : 7
- Size of Strands : 0.2 mm
- Standards Met : IEC 584-3, RoHS Compliant
- CODE No.:611-8056
