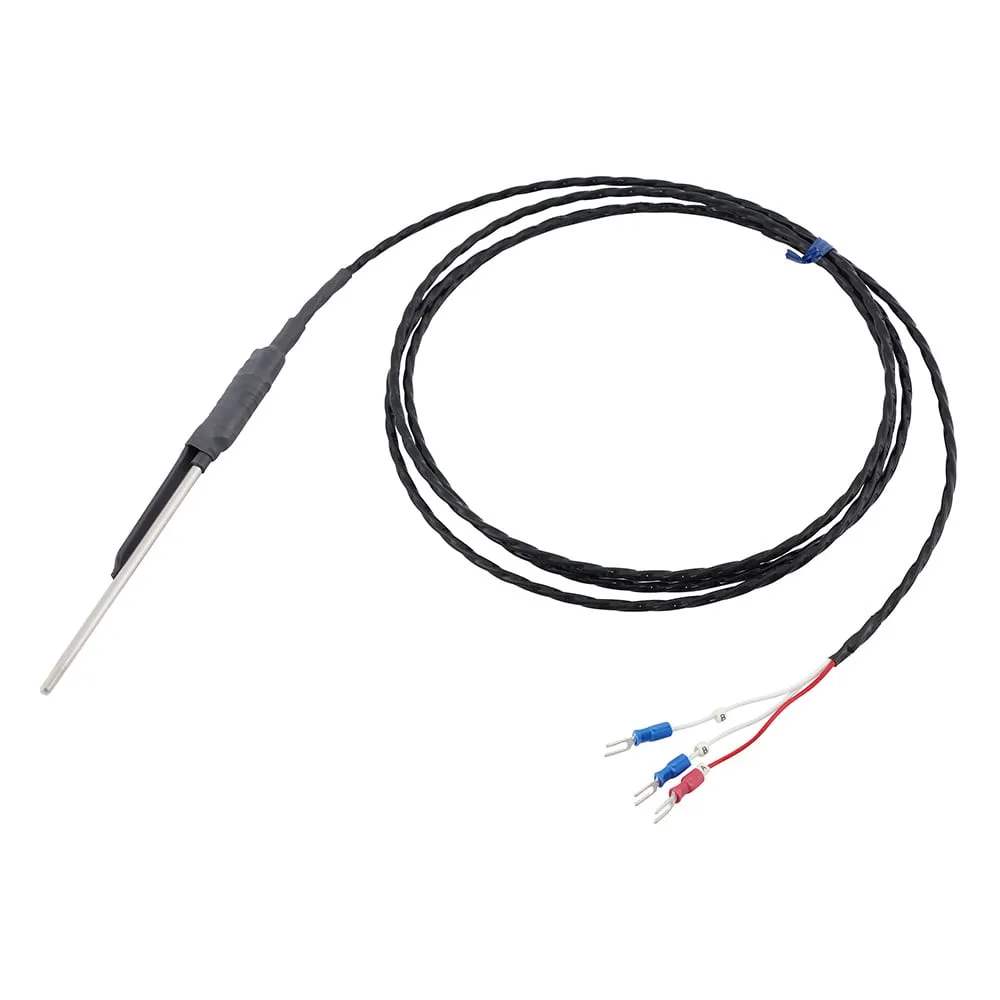

1-5721-01-56 Temperature Measuring Resistor (sheath type, Teflon R-coated) φ3.6 x L 100 with English Calibration Certificate FPT100
model:
1-5721-01-56
category:
toner
Product Description
Product Model: 1-5721-01-56 Spec Temperature range: - 1 […]
Contact Us
Product Details
Product Model: 1-5721-01-56
Spec
- Temperature range: - 199 ~ 100 degrees C
- Sheath size: phi 3.2 x 100 mm (SUS only thickness. After Teflon coating, the diameter is 3.6 mm. )
- Element: Platinum Temperature Resistor (Pt 100) Class B 3-wire type
- Lead wire coating material: Teflon ® (Fluororesin)
- Lead wire length: 2 m
- Lead wire terminal: crimped Y terminal
- Sheath Material: Stainless Steel (SUS 316) Teflon ® (Fluororesin) Coating
- Sheath type/Teflon coating
