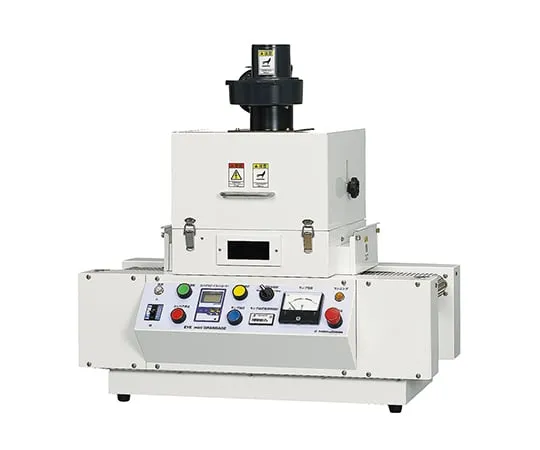

3-5888-01 UV Irradiation Device ECS-1511U
Product Description
Product Model: 3-5888-01Product Brand: EYE GRAPHICS Fea […]
Contact Us
Product Details
Product Model: 3-5888-01
Product Brand: EYE GRAPHICS
Features
- Compact and compact tabletop ultraviolet curing conveyor system.
- The lamp output can be switched to 2 levels: 1 kW and 1.5 kW.
Spec
- Model number: ECS-1511U
- Specification: Body
- Size (mm): Approximately 720 x 390 x 735
- Weight (kg): About 71
- Main unit size: Approximately 720 x 390 x 735mm
- Body weight: Approx 71kg
- Power supply: 1φ AC200V±6% 50/60Hz 10A
- Power consumption: 1650W
- Cord length: 3m
- Conveyor belt: Stainless steel Mesh (Width: 130mm)
- Conveyor speed: 50Hz/0.8 - 8.0m/min, 60Hz/0.97 - 9.7m/min
- Pass line: 255mm
- Maximum work dimensions: (width) 130 x (height) 60mm
- Work recomm***ed weight: Total sum of 1.0kg or less (in the case of forward rotation)
- Effective irradiation width: 85mm (uniformity of 80%)
- Irradiation instrument reflection board: Cold mirror light condensing type (100mm)
- Irradiation distance: 100 - 155mm (with IRCF/120 - 155mm)
- Irradiation instrument mounting direction: Perp***icular or parallel to the flow
- Conform lamp: H015-L312 or M015-L312
- Light emission length: 122mm
- Lamp output: 1.0kW/1.5kW (2 steps switching)
- *Transportation cost, carrying cost, installation cost, etc. are required separately. Please contact with us.
- *Body does not include a lamp. Choose from mercury or metal halide.
- *We also have a type in which conveyor and power supply is separate. Please contact with us.
