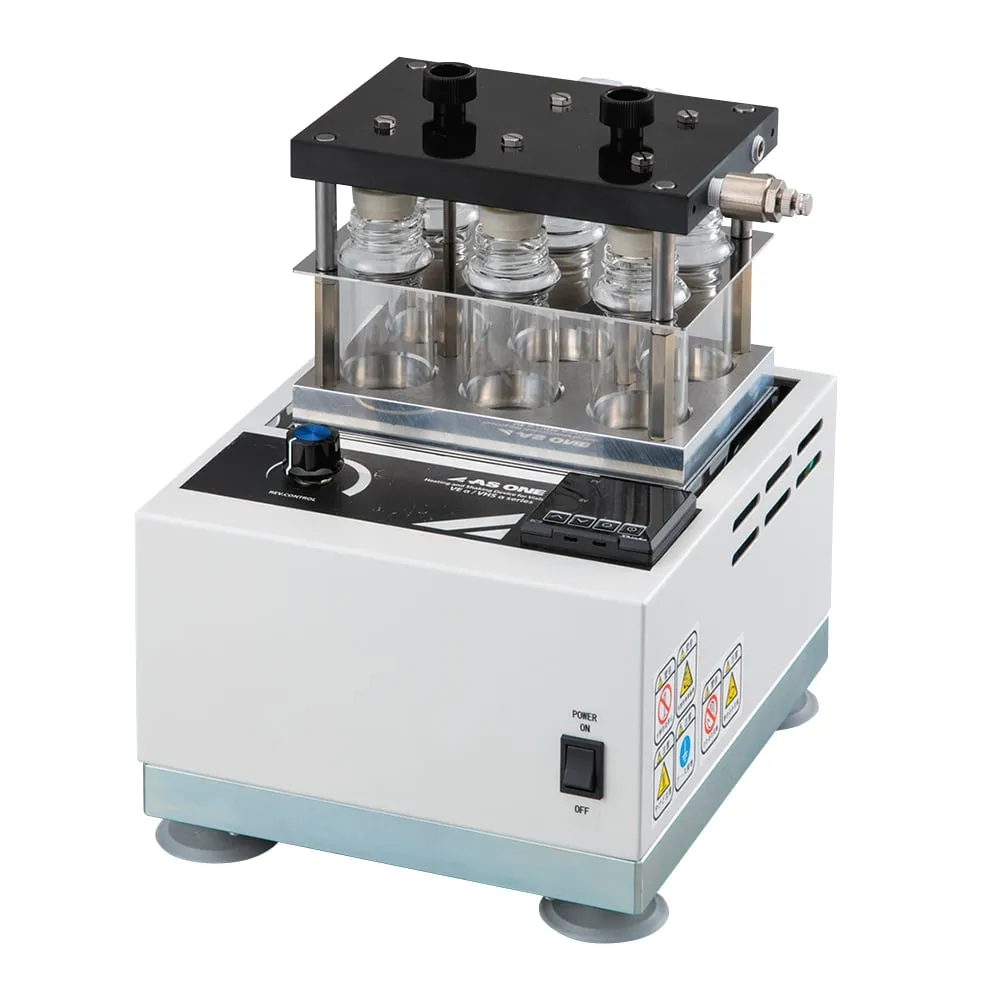

4-801-21 Vial Evaporator 50 mL x 6 Pieces VEA-6
Product Description
Product Model: 4-801-21Product Brand: AS ONE Corporatio […]
Contact Us
Product Details
Product Model: 4-801-21
Product Brand: AS ONE Corporation
Features
- < Vial Evaporator >
- Multiple samples can be evaporated simultaneously.
- Since it ***s an aluminum block with excellent temperature distribution, uniform heating and stirring is possible.
- A heating algorithm is ***d to suppress rapid temperature rise.
- Each model number comes with its own rack.
- < Rubber plug with hole >
- A rubber stopper with holes that can be attached to screw tube bottles and 15 mL centrifuge tubes.
- The unique structure with tapers on the top and bottom allows insertion into multiple types of screw tubing bottles.
- There are through-holes to insert syringes, lure fittings and lure stopcocks.
- Can be ***d for VEA-6, -8 and 12 types. *The body comes with a silicone rubber plug as standard.
- Sample can be concentrated in the vial bottle!
Spec
- Specifications: 50 ml x 6 pcs
- Size (mm): 200 x 230 x 260
- < Vial Evaporator >
- Temperature Setting Range: Room Temperature +5~+120°C
- Speed: 60~450rpm
- Amplitude: 5 mm
- Vacuum Hose Connection Port: Bamboo Shoot for Φ6mm
- Gas Contact Material: Brass (Electroless Nickel Plating), PP, Phenolic Resin
- motors: DC brushless motors
- Temperature Sensor: K Thermocouple (Embedded Inside Aluminum Stage)
- Power: 100 VAC 50/60Hz 4.0 A
- Power Cord Length: 2.5 m (Grounded/3P)
- Applicable Vial Bottle: 5-098-09 * 1(Not included with the product.)
- Accessory: Silicone Rubber Stopper (6)
- < Rubber plug with hole >
- Size: Φ11 (Φ10) x 5 mm, Φ15.5 (Φ14) x 5 mm, Φ23 (Φ20) x 5 mm, Through Hole: Φ3.8 mm
- *Vacuum pump, cold trap, vacuum hose stand and vial (screw tube bottle) are not included.
- *1 Use less than half the volume of the bottle before concentration.
