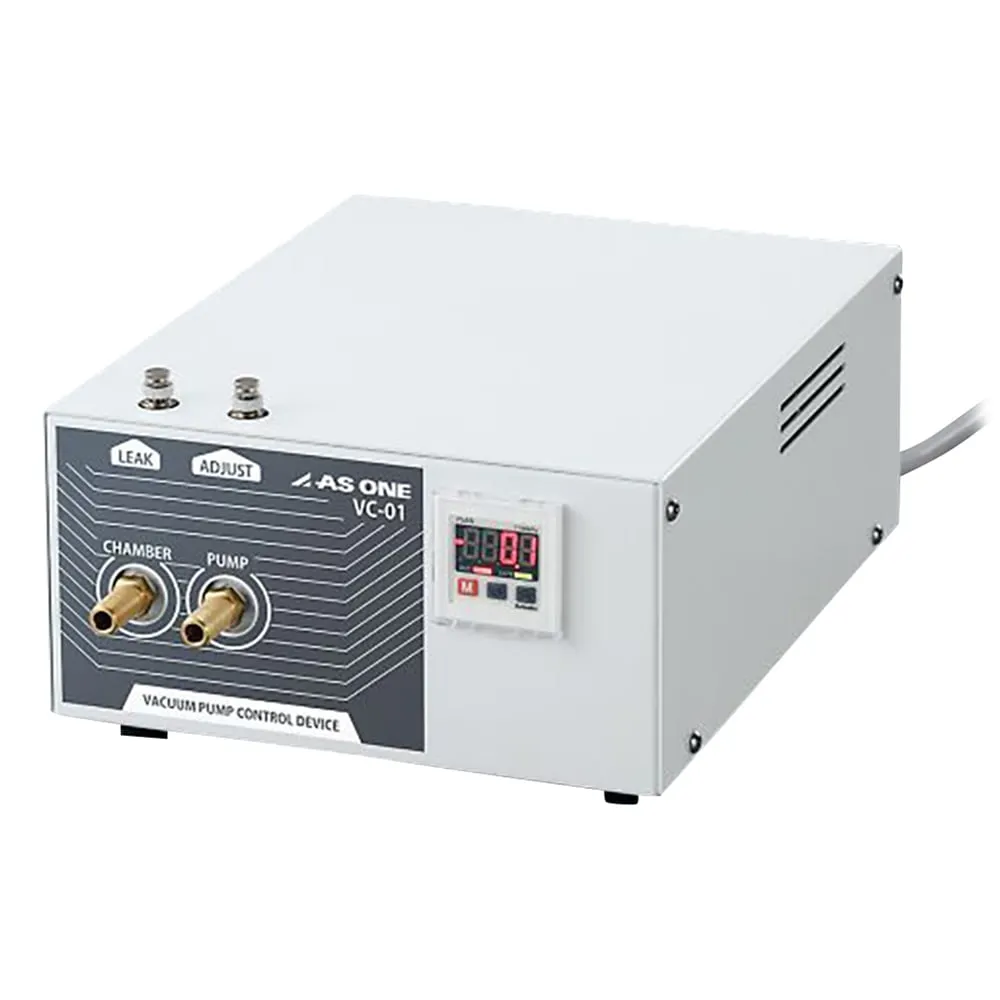

4-798-01 Vacuum Controller VC-01
Product Description
Product Model: 4-798-01Product Brand: AS ONE Corporatio […]
Contact Us
Product Details
Product Model: 4-798-01
Product Brand: AS ONE Corporation
Features
- An in-line connection between the sealed container (chamber) and the vacuum pump controls the pressure in the container to a constant value.
- It can be ***d in two ways (switching): electromagnetic valve control when using a pump suitable for continuous operation, such as an oil rotary pump, and power control when using a dry pump with no oil back concerns.
- In the case of power control, once the set value is reached, the pump power is turned off, thus saving power.
- Convenient for long duration pressure control.
Spec
- Pressure setting range (kPa): 101.3 to 0.0 (atmospheric pressure)
- Minimum display unit: 0.1kPa
- Control method: solenoid valve or power supply ON/OFF control
- Power supply: AC100V 50/60Hz 6A
- Connected capacity: Resistor load AC100V VMAX6A
- Connection port diameter: φ10.5mm
- Size: 210 x 310 x 130mm
- Weight: about 4kg
- *Cannot be ***d for corrosive gas flammable gas.
