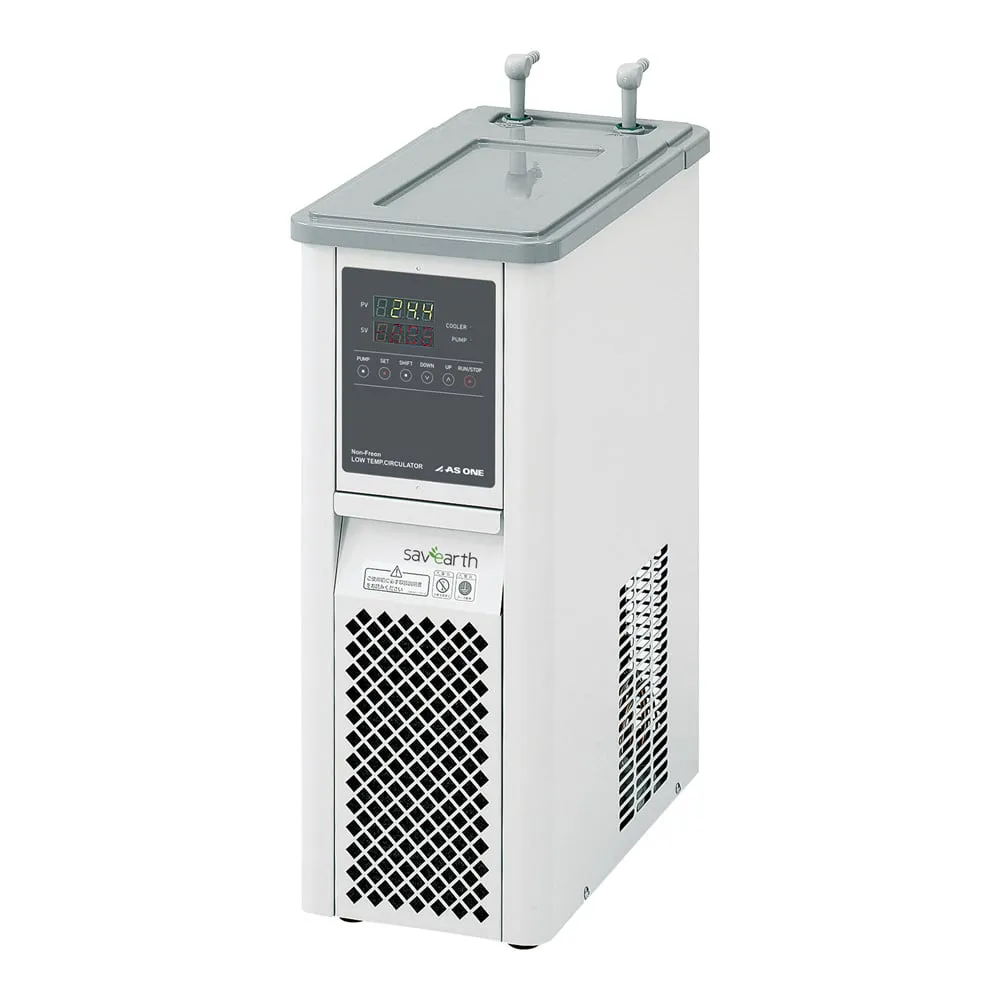

4-6512-01　Non-CFC cooling water circulation device　NF-300

model: 4-6512-01

brand: AS ONE Corporation

category: laboratoryinstruments

Product Description

Product Model: 4-6512-01Product Brand: AS ONE Corporati […]

18866622123

WeChat ID: 18866622123

Product Model: 4-6512-01

Product Brand: AS ONE Corporation

Temperature range (°C): -10 to +30
Temperature Adjustment Accuracy ±2.0°C(Room Temperature 20°C/Maximum Circulation Volume/Power Supply 100 VAC 50/60Hz/Setting 5~30°C/At No Load)
Circulation system: Closed system counter circulation
Type of solution ***d: fresh water, pure water, ethylene glycol, etc.
External Circulation Capacity (50/60Hz): Maximum Flow 12/12L/min, Maximum Pump Head 5.4/6.6 m (When a Single Pump Is Used)
Cooling capacity (at10): 50 Hz/320 W
Circulation Nozzle Outer Diameter: φ 11 mm (Applicable Tube Inner Diameter φ 9 mm)
Liquid Tank: φ160 x H160mm Approx. 3 L
Coolant: R1234yf
Size: 218 x 430 x 563 mm
Power: 100 VAC 50/60Hz
Timer: 1 minute to 47 hours 59 minutes (1 minute increments)
Self-Diagnosis Function: Upper/Lower Temperature Abnormality Detection, Sensor Abnormality, Chiller Overload Relay, Chiller Protection Timer, Power Failure Detection, Control Temperature Abnormality, Memory Error
External Input/Output: External Temperature Sensor Input Terminal, Analog Output Terminal for Thermometer (1 ~5 VDC) Alarm Output Terminal (12 VDC ~17 VDC)
Weight: Approx. 27 kg
