Electronic/Electrical Parts and Controll Equipments

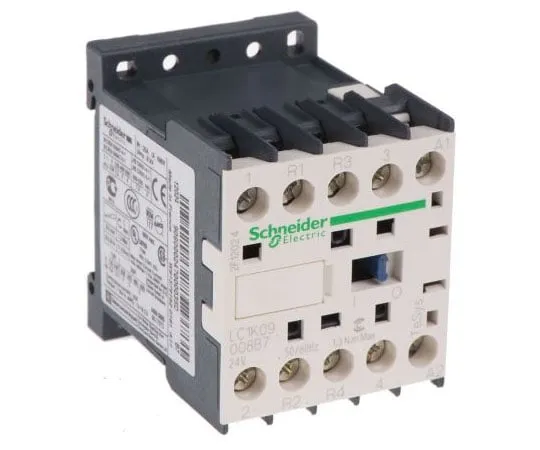

63-7631-33 Schneider Electric 4 Pole Contactor, 9 A, 24 V ac Coil, TeSys K, 2NO/2NC LC1K09008B7
model:
63-7631-33
brand:
Schneider Electric
Product Description
Product Model: 63-7631-33Product Brand: Schneider Elect […]
Contact Us
Product Details
Product Model: 63-7631-33
Product Brand: Schneider Electric
Features
- BS5424, IEC 60947, VDE 0660, NFC63-110. UL; CSA. Stock no. ; 620-5122 620-5122 features solder pins for printed circuit boards. 4 Pole Contactors with Screw Clamp or Solder Termination. Contactors have a switching voltage of 440Vac and a coil consumption (ac coils 50/60Hz rated) of 4.5VA (Hold in) and 30VA (inrush). Utilisation category AC1: 20A (fig. quoted in table is in relation to utilisation category AC3) DIN rail or screw mounting Ambient air temperature range; -25 to +50°C
Spec
- Quantity:1piece
- Coil Voltage : 24 V ac
- Number of Poles : 4
- Contact Current Rating : 9 A
- Range : TeSys K
- Series : LC1K
- Normal State Configuration : 2NO/2NC
- Contact Voltage Rating : 690 V ac
- Number Of Auxiliary Contacts : 2
- Terminal Type : Screw
- Width : 45mm
- CODE No.:609-0150
