Electronic/Electrical Parts and Controll Equipments

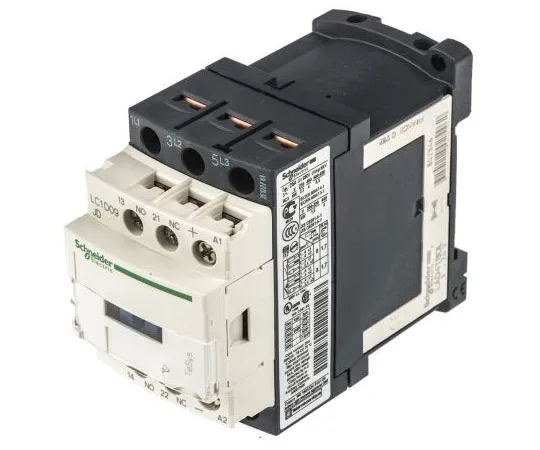

63-7631-04 Schneider Electric 3 Pole Contactor, 9 A, 12 V dc Coil, TeSys D, 3NO, 4 kW LC1D09JD
model:
63-7631-04
brand:
Schneider Electric
Product Description
Product Model: 63-7631-04Product Brand: Schneider Elect […]
Contact Us
Product Details
Product Model: 63-7631-04
Product Brand: Schneider Electric
Features
- UL and CSA. Contactors suffixed BL accept front mount auxiliary contact blocks but only the 2 contact version, they do not accept side mounted contacts. 3 Pole Contactors, DC Controlled. Built-in coil suppression 3 N/O poles Auxiliary contact configuration one N/O, one N/C Operating time closing 12 to 22 ms Operating time opening 4 to 19 ms
Spec
- Quantity:1piece
- Coil Voltage : 12 V dc
- Number of Poles : 3
- Contact Current Rating : 9 A
- Power Rating : 4 kW
- Range : TeSys D
- Series : LC1D
- Normal State Configuration : 3NO
- Contact Voltage Rating : 690 V ac
- Number Of Auxiliary Contacts : 2
- Terminal Type : Screw
- Maximum Operating Temperature : +60°C
- CODE No.:608-9346
