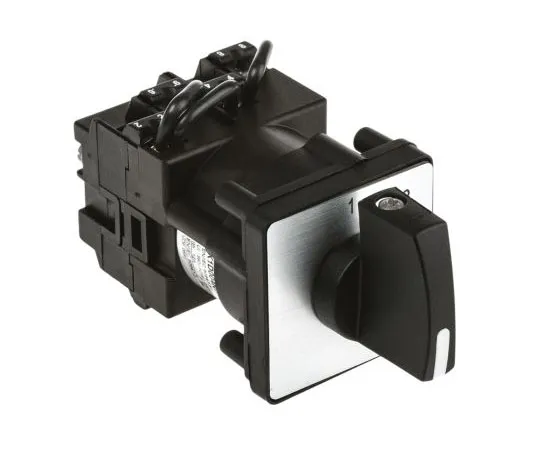

63-7630-88 Schneider Electric, SP 4 Position 45° Rotary Switch, 690 V ac, 5.6 A, Handle, Stay Put Actuator K1D004NLH
model:
63-7630-88
brand:
Schneider Electric
Product Description
Product Model: 63-7630-88Product Brand: Schneider Elect […]
Contact Us
Product Details
Product Model: 63-7630-88
Product Brand: Schneider Electric
Features
- Industrial Cam Switches. Control circuits (EN60947-5-1) or power circuits (EN60947-3) IP65 single 22mm diameter fixing hole Finger-proof terminals Operating temperature -25 to +55°C Slow break contacts with positive opening operation Thermal current rating: 12A free air, 10A enclosed Nominal voltage: 230V; 400V
Spec
- Quantity:1piece
- Series : Harmony K
- Normal State Configuration : 3NO/NC
- Maximum Current : 5.6 A
- Maximum Voltage : 690 V ac
- Number of Positions : 4
- Terminal Type : Screw
- Angle of Throw : 45°
- Length : 78mm
- Width : 45mm
- Actuator Type : Handle, Stay Put
- CODE No.:608-8911
