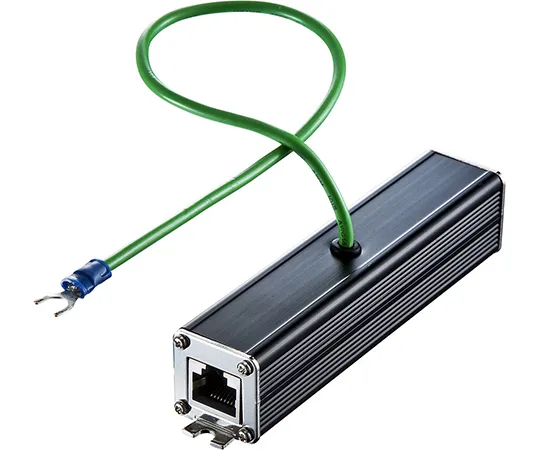

64-0889-18 Lightning Surge Protector Supports Gigabit ADT-NF5EN
Product Description
Product Model: 64-0889-18Product Brand: SANWA SUPPLY IN […]
Contact Us
Product Details
Product Model: 64-0889-18
Product Brand: SANWA SUPPLY INC.
Features
- Gigabit Ethernet capable RJ-45 relay adapter to protect equipment from lightning surges.
- Protects networked devices from lightning surges.
- Supports Gigabit Ethernet.
- Category 5e (1000BASE-T) transmission is possible.
- Power over Ethernet (PoE) (48 V) is supported.
- Forged aluminum body with perfect EMC noise.
- * Since this product ***s electronic components inside, it will not pass in the Giga test of the fluke tester.
Spec
- connectors: RJ -45 shield port
- rated voltage: Data/5 V, Power/48 V
- Surge Discharge Current (8/20 μs): Power Data/10 KA
- Protected pin: All 8 pin
- protected mode: differential and common mode
- insulation Impedance: 1000 MΩ
- Data rate: 1000 Mbps (1000 BASE-T)
- Impulse protection voltage: 500 V or less
- Response time: 5 ns or less
- Operating Temperature: -20 to 60 ° C
- Operating Humidity: 0 to 90% (No condensation)
- Size/Weight: W 25 x D 120 x H 25 mm/105 g
