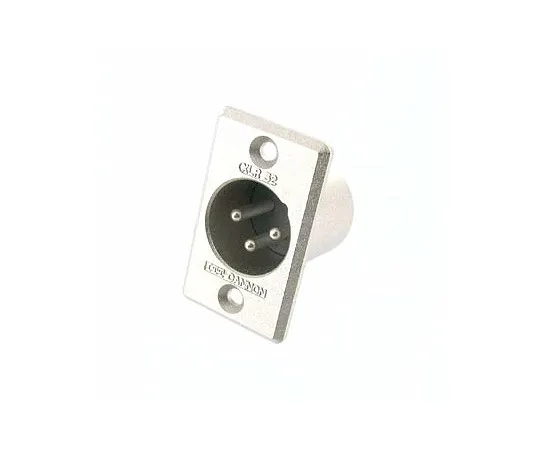

63-3167-89 Cannon Connector for 3-PIN Male panel XLR332
Electronic/Electrical Parts and Controll Equipments

63-3167-89 Cannon Connector for 3-PIN Male panel XLR332

model: 63-3167-89
brand: ITT Cannon

Product Description

Product Model: 63-3167-89Product Brand: ITT Cannon Feat […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-3167-89
Product Brand: ITT Cannon

Features

  • About the Canon Connector
  • Commonly referred to as the Canon Connector or the XLR Connector, many connectors are ***d for audio (especially for professionals) balance connections.
  • Therefore, even with three pins, one pin is enough for one channel.
  • The basic assignment is 1-GND2-HOT3-COLD. However, you need to be careful beca*** in the world, the number 2 and number 3 are reversed.
  • In addition, a female is generally ***d for the input side (equipment panel side) and a male for the cable side.
  • This is a male connector that is typically ***d for balanced input/output of Pro Audio devices. (The female is XLR-3-31.) Pin 1: GND, Pin 2: Signal HOT, Pin 3: Signal COLD is the standard connection. (HOT and COLD can be opposite.) The metal shell connects to the GND. Unlike consumer RCA plug cables, professional devices do not necessarily have a knife (jack) on the device side. (The microphone output is usually male.) Including signal polarity, the culture is different in halls and studios, NHK and commercial broadcasting, etc. It seems that there are many cases where male and female are provided in parallel in high-*** mixers. Some devices have polarity switches.

Spec

  • Connector configuration: pin receptacle
  • Number of pins: 3 pins
  • Terminal: Solder terminal
  • Rated voltage: 133 VAC
  • Current rating: 15 A
  • Withstand voltage: 1400 VAC
  • Insulation resistance: 1000 megohms or more (500 VDC)
  • Contact resistance: 5 m.OMEGA. or less
